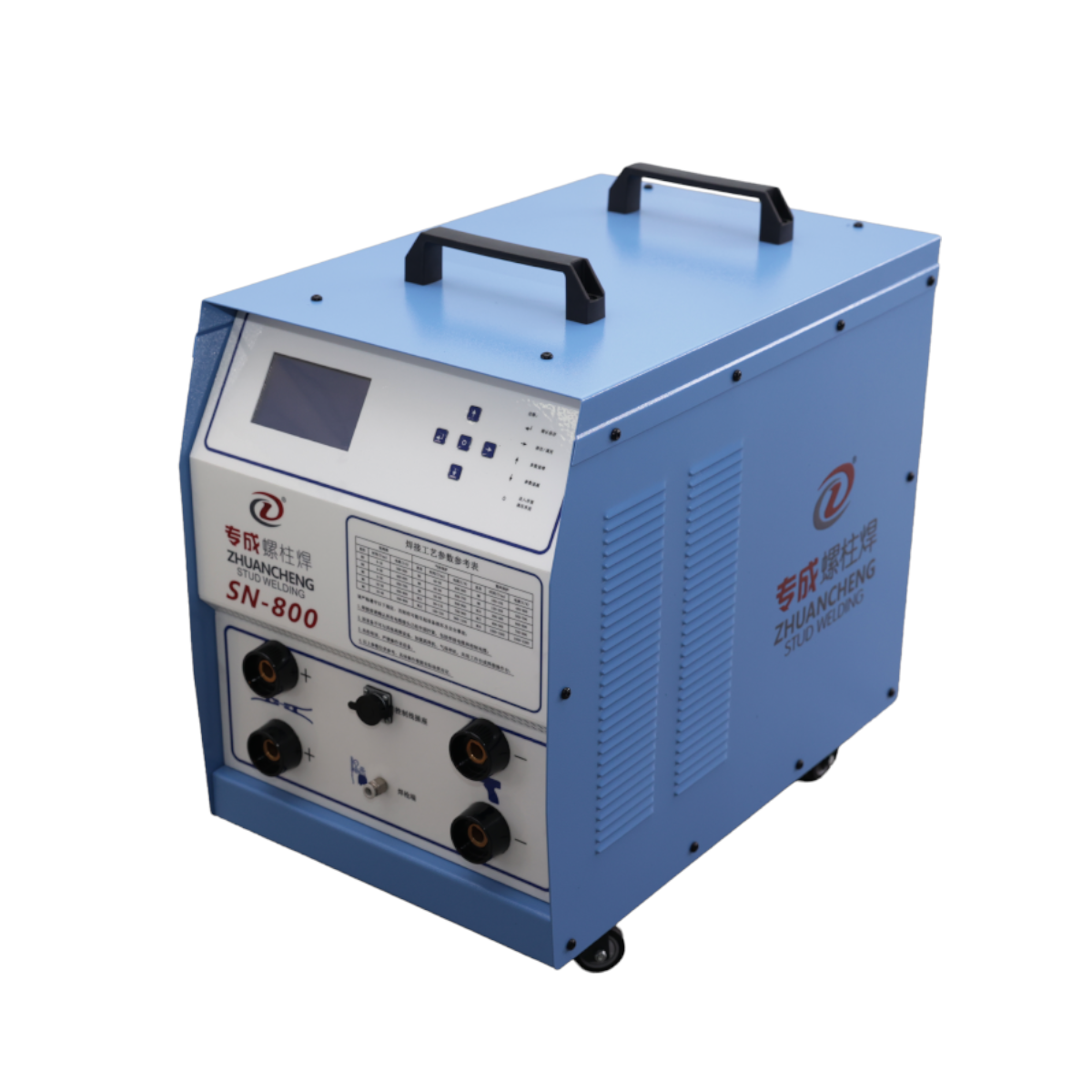

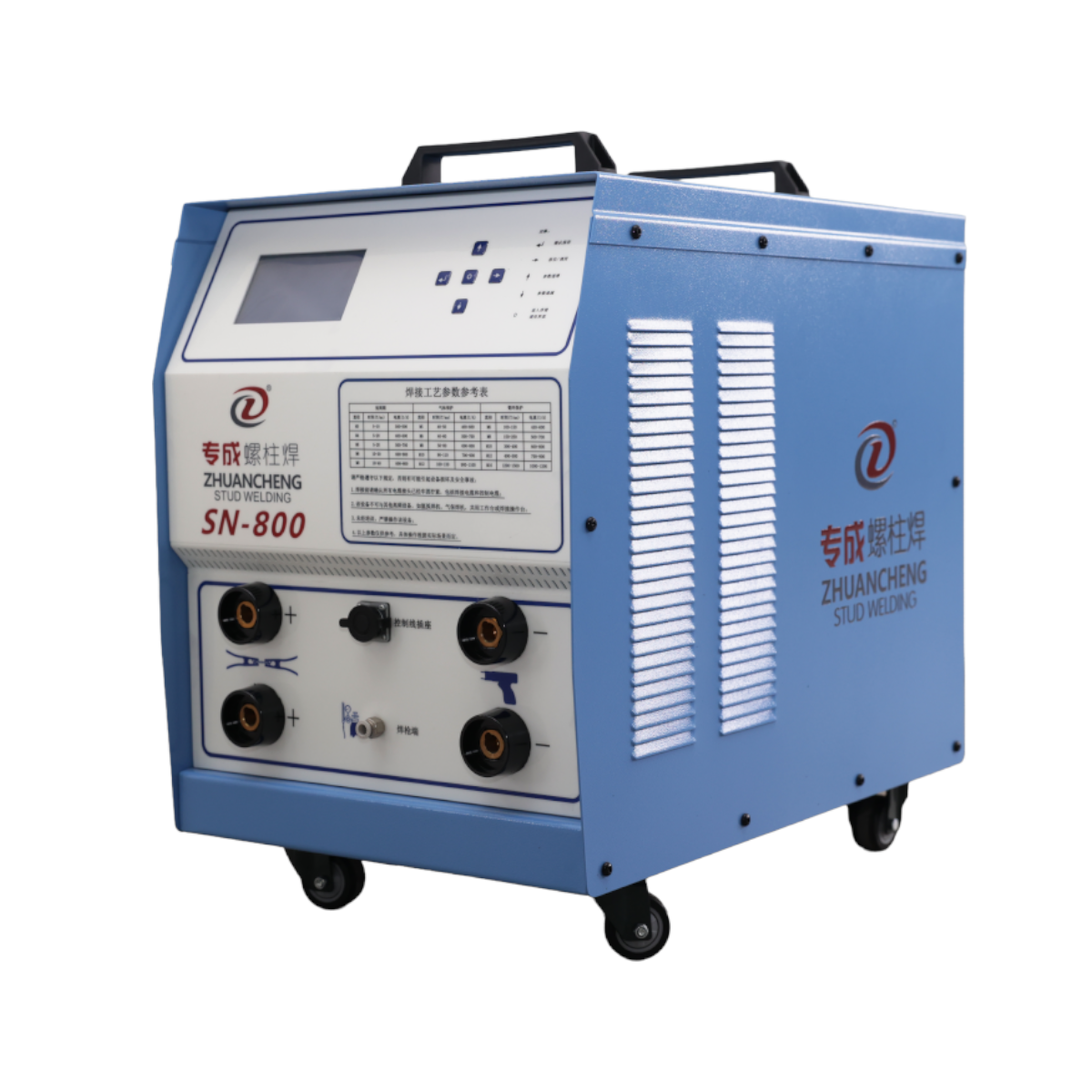

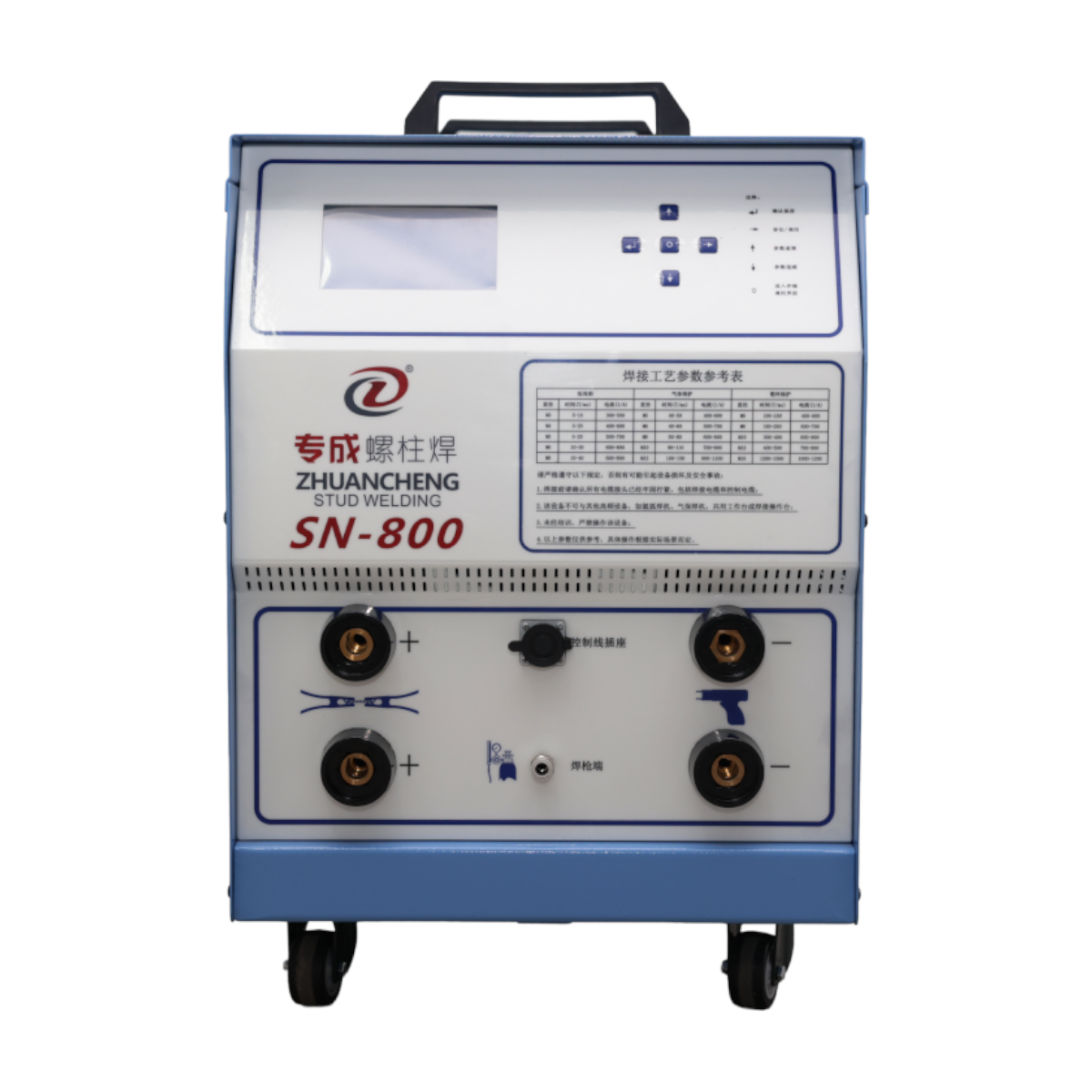

SN-800 Inverter Draw Arc Stud Welding Machine

SN-800 Inverter Draw Arc Stud Welding Machine

The SN-800 is a professional-grade inverter draw arc stud welding machine designed for medium-duty industrial applications. Utilizing advanced IGBT inverter technology, this machine delivers reliable, high-quality welds on steel plates with exceptional energy efficiency.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 800A
• Max Welding Current: 800A
• Welding Current Range: 200-800A
• Welding Time Range: 0-990ms
• Suitable Stud Diameter: M3-M10
• Applicable Material Thickness: ≥0.65mm
• Weight: 48kg
• Dimensions: 560×540×590mm
• Cooling Mode: Air Cooled

Key Features

• Mature IGBT inverter technology with reliable arc protection
• Microcomputer automatic control system for precise welding
• Wide welding current range with fine adjustment capability
• High control accuracy and stable performance
• Compact, lightweight design for easy portability
• Energy-efficient operation reduces power consumption
• Suitable for mild carbon steel, stainless steel, and galvanized plate

Applications

Ideal for automotive manufacturing, sheet metal processing, steel structures, machinery fabrication, and general industrial welding applications requiring M3-M10 studs.

What's Included

• SN-800 Main Unit
• Welding Gun
• Ground Cable
• User Manual
• Quality Certificate

ISO Certified Quality - Backed by our 20 years of manufacturing experience and rigorous quality assurance processes.
