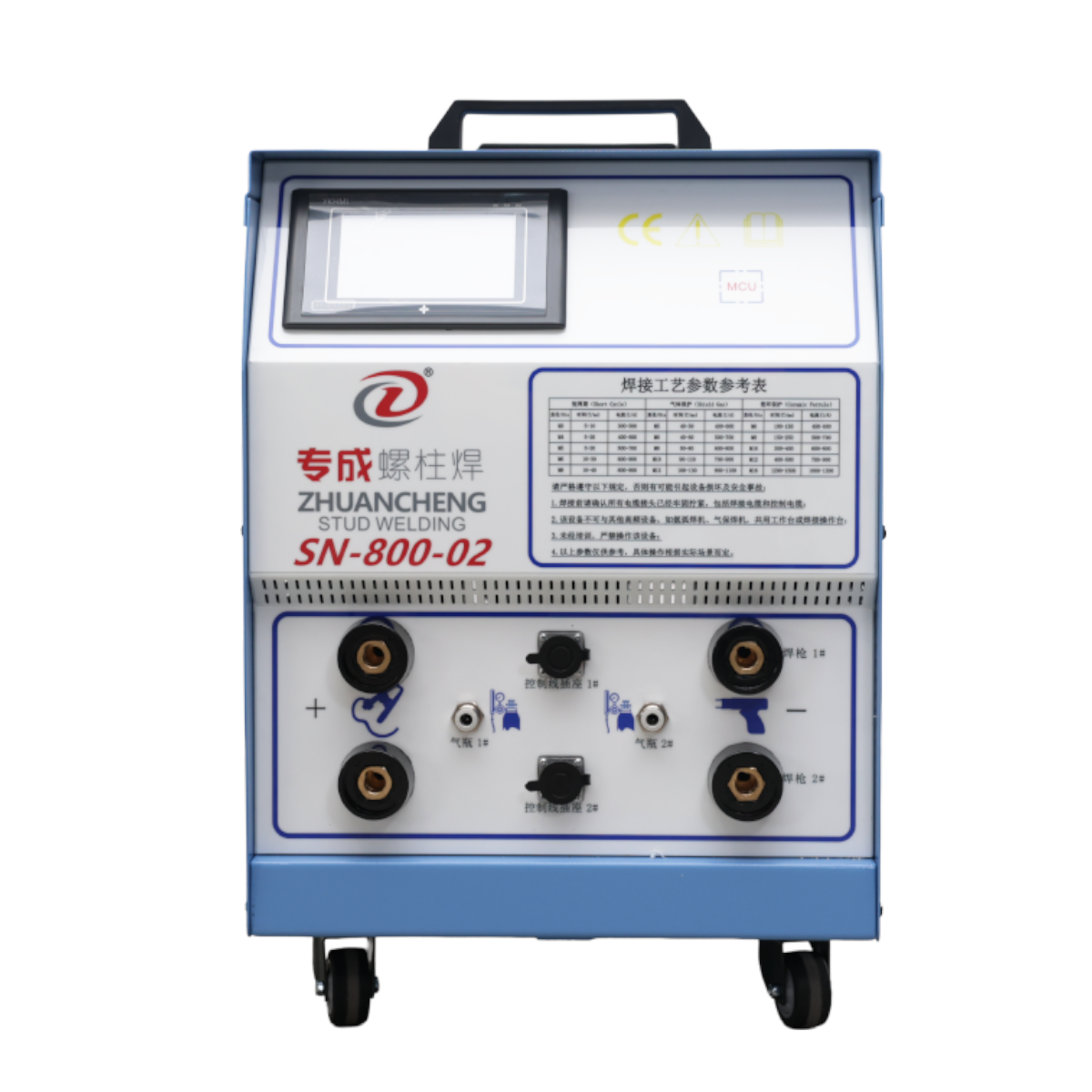

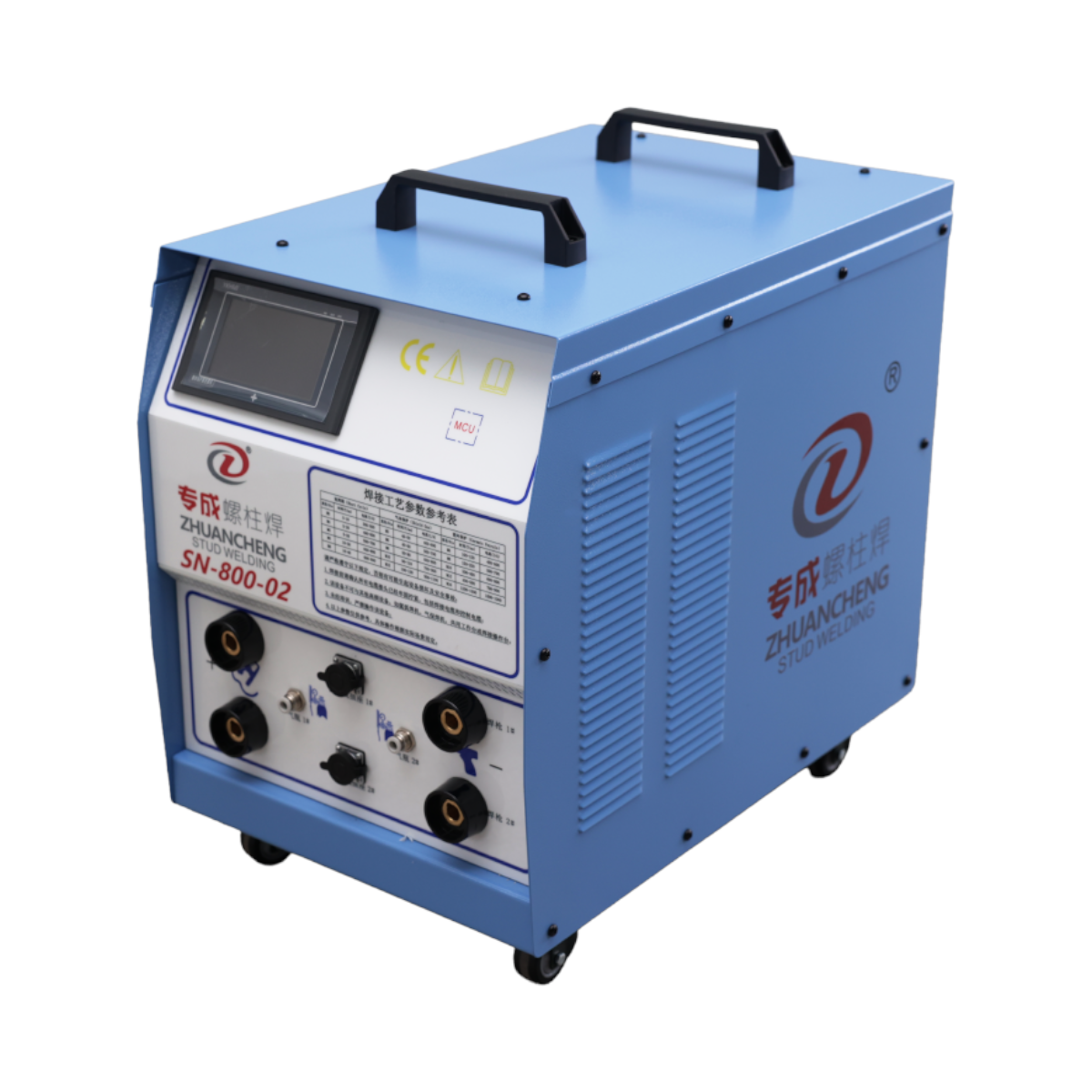

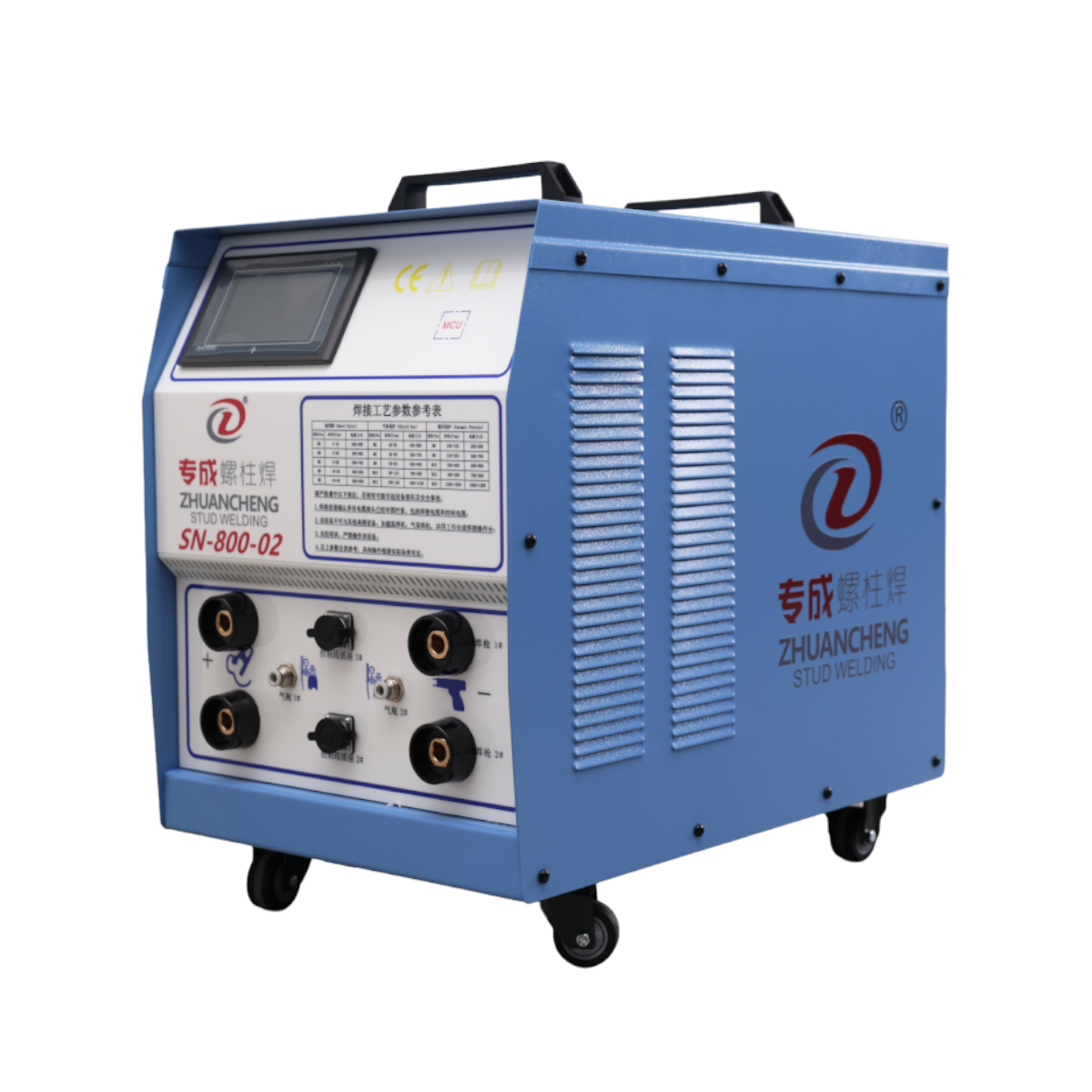

SN-800-02 Dual-Channel Stud Welding System

SN-800-02 Dual-Channel Stud Welding System

The SN-800-02 is an innovative dual-channel stud welding system that enables simultaneous welding of different stud specifications. This versatile solution significantly improves production efficiency by allowing operators to switch between stud sizes without changing equipment setup.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 800A per channel
• Max Welding Current: 800A per channel
• Welding Current Range: 200-800A
• Welding Time Range: 0-990ms
• Number of Channels: 2 independent channels
• Weight: 60kg
• Dimensions: 560×540×590mm
• Cooling Mode: Air Cooled

Key Features

• Dual independent welding channels for maximum flexibility
• Weld different stud sizes simultaneously without equipment changes
• Convenient and time-saving for varied production requirements
• Each channel independently controlled with separate parameters
• IGBT inverter technology for both channels
• Ideal for customers requiring frequent stud specification changes
• Significantly reduces production downtime

Applications

Perfect for sheet metal fabrication facilities, automotive production lines, appliance manufacturing, and any operation requiring versatile stud welding with frequent specification changes. Ideal for job shops and custom fabricators.

What's Included

• SN-800-02 Dual-Channel Main Unit
• Two Independent Welding Guns
• Ground Cable Assembly
• User Manual
• ISO Quality Certificate

Efficiency Through Versatility - Double your productivity with the convenience of dual-channel operation.
