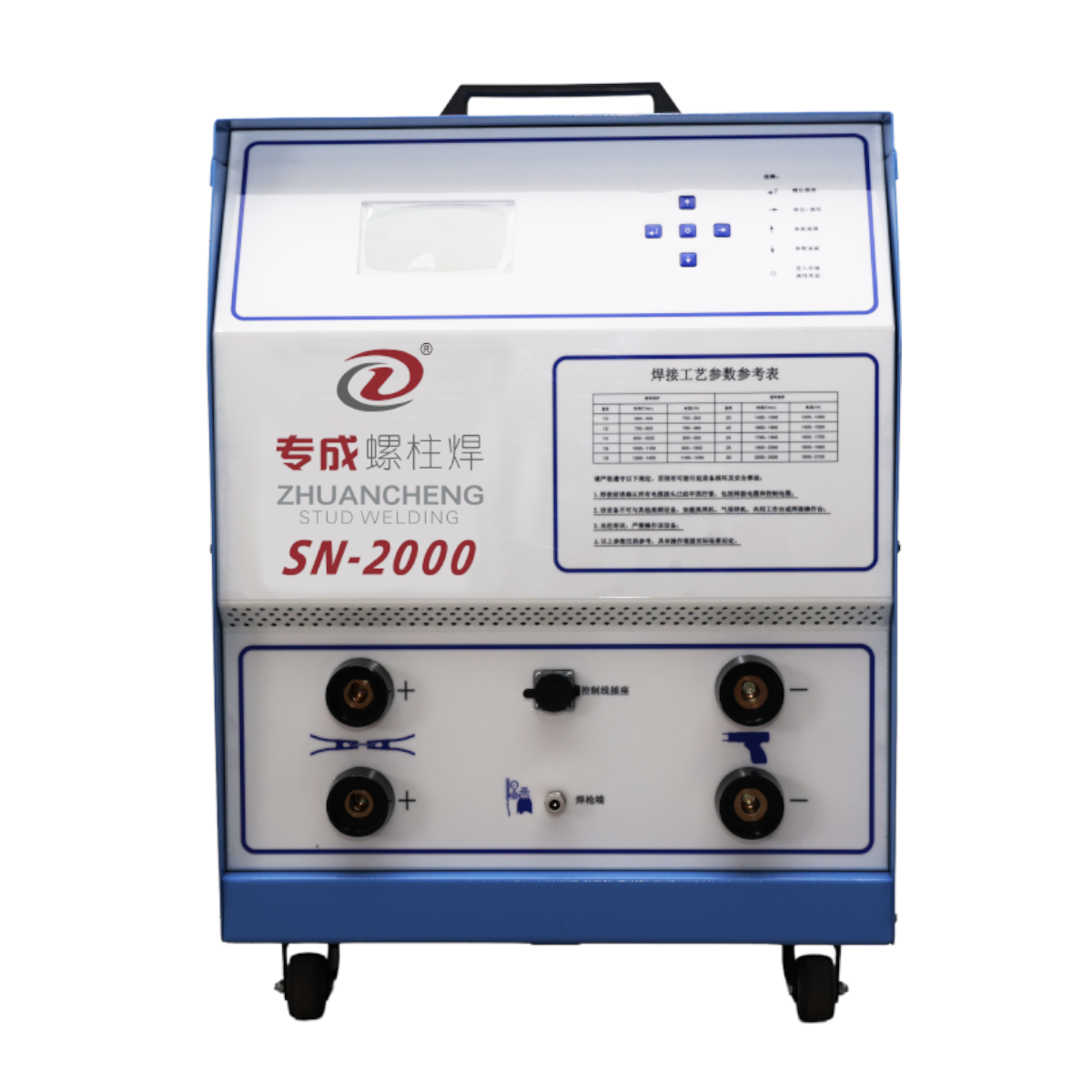

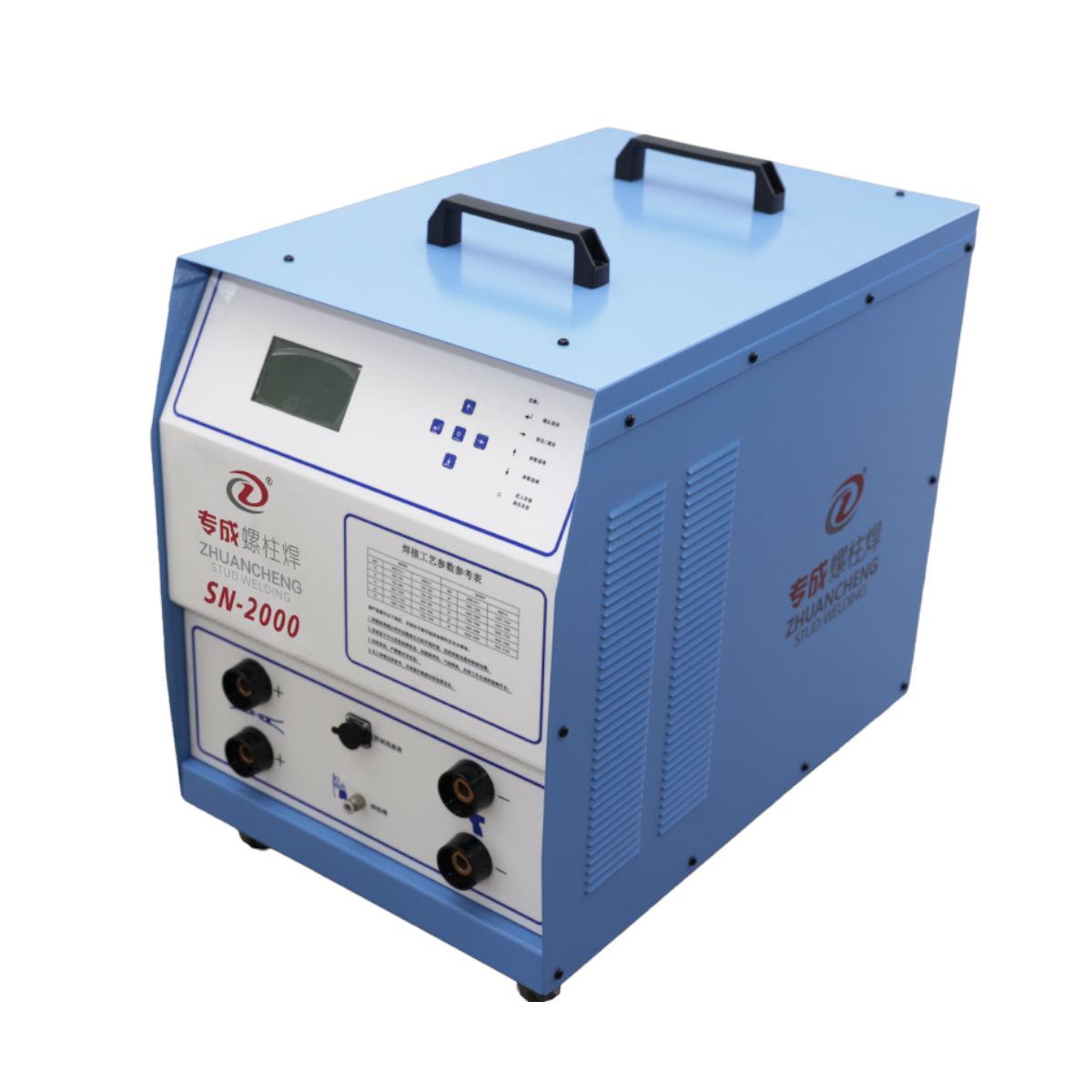

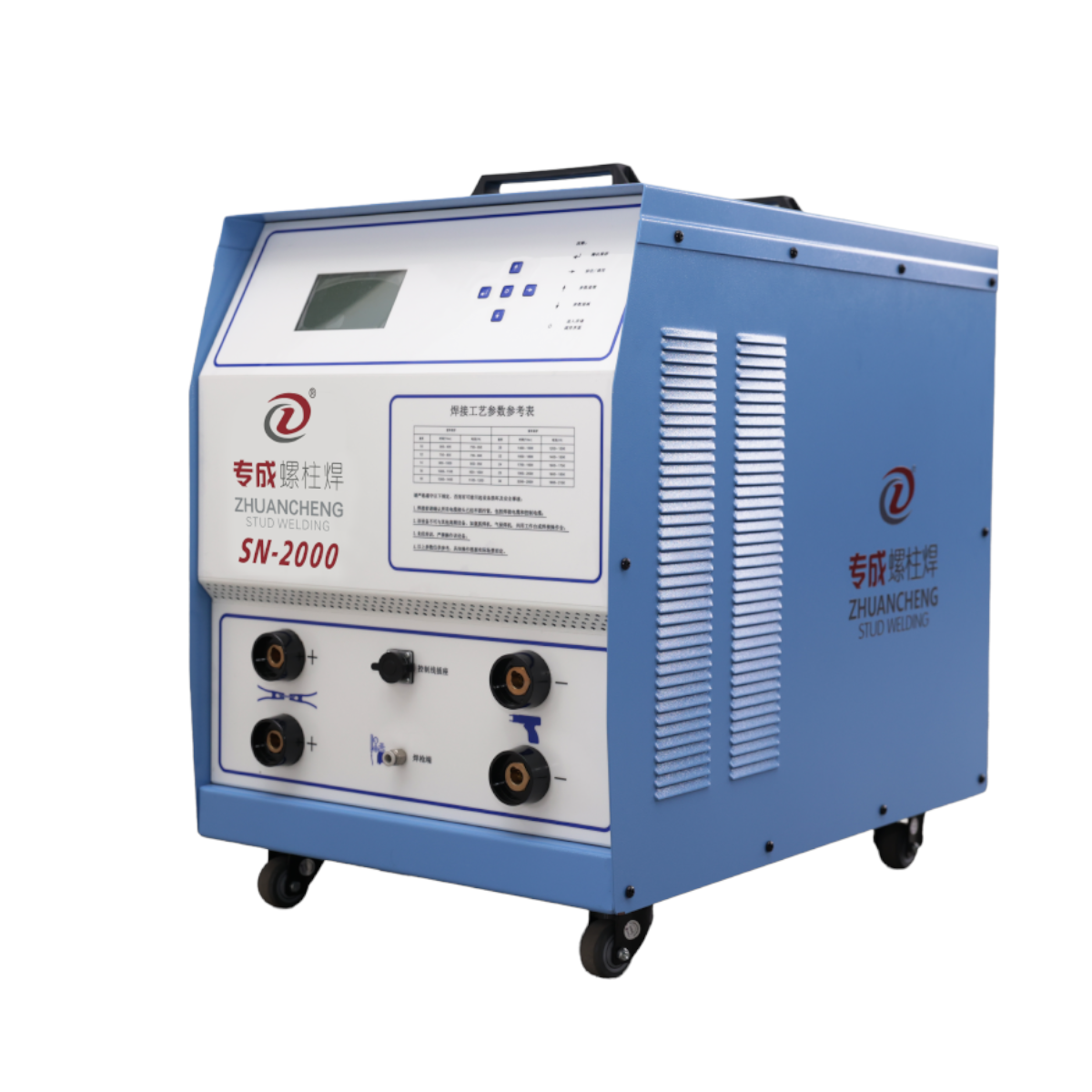

SN-2000 Inverter Draw Arc Stud Welding Machine

SN-2000 Inverter Draw Arc Stud Welding Machine

The SN-2000 is a high-capacity inverter draw arc stud welding machine designed for heavy industrial applications requiring 2000A welding current. This powerful machine handles larger diameter studs while maintaining precise control and weld quality.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 2000A
• Max Welding Current: 2000A
• Welding Current Range: 200-2000A
• Welding Time Range: 0-3000ms
• Suitable Stud Diameter: M3-M20
• Applicable Material Thickness: ≥0.65mm
• Weight: 70kg
• Dimensions: 680×540×940mm
• Cooling Mode: Air Cooled

Key Features

• High-power 2000A output for large-diameter studs
• Advanced IGBT inverter technology with superior arc protection
• Microcomputer control system with comprehensive parameter adjustment
• Handles studs up to M20 diameter
• Extended welding time range up to 3000ms
• Robust construction for continuous heavy-duty operation
• Efficient air cooling system for thermal management

Applications

Ideal for large-scale shipbuilding, bridge construction, heavy steel structures, pressure vessel manufacturing, wind turbine fabrication, and industrial applications requiring M3-M20 stud welding on thick steel plates.

What's Included

• SN-2000 Main Unit
• Professional Heavy-Duty Welding Gun
• Ground Cable Assembly
• Complete Technical Manual
• ISO Quality Certificate

Heavy Industrial Performance - Engineered for the most demanding welding applications with proven reliability in harsh industrial environments.
