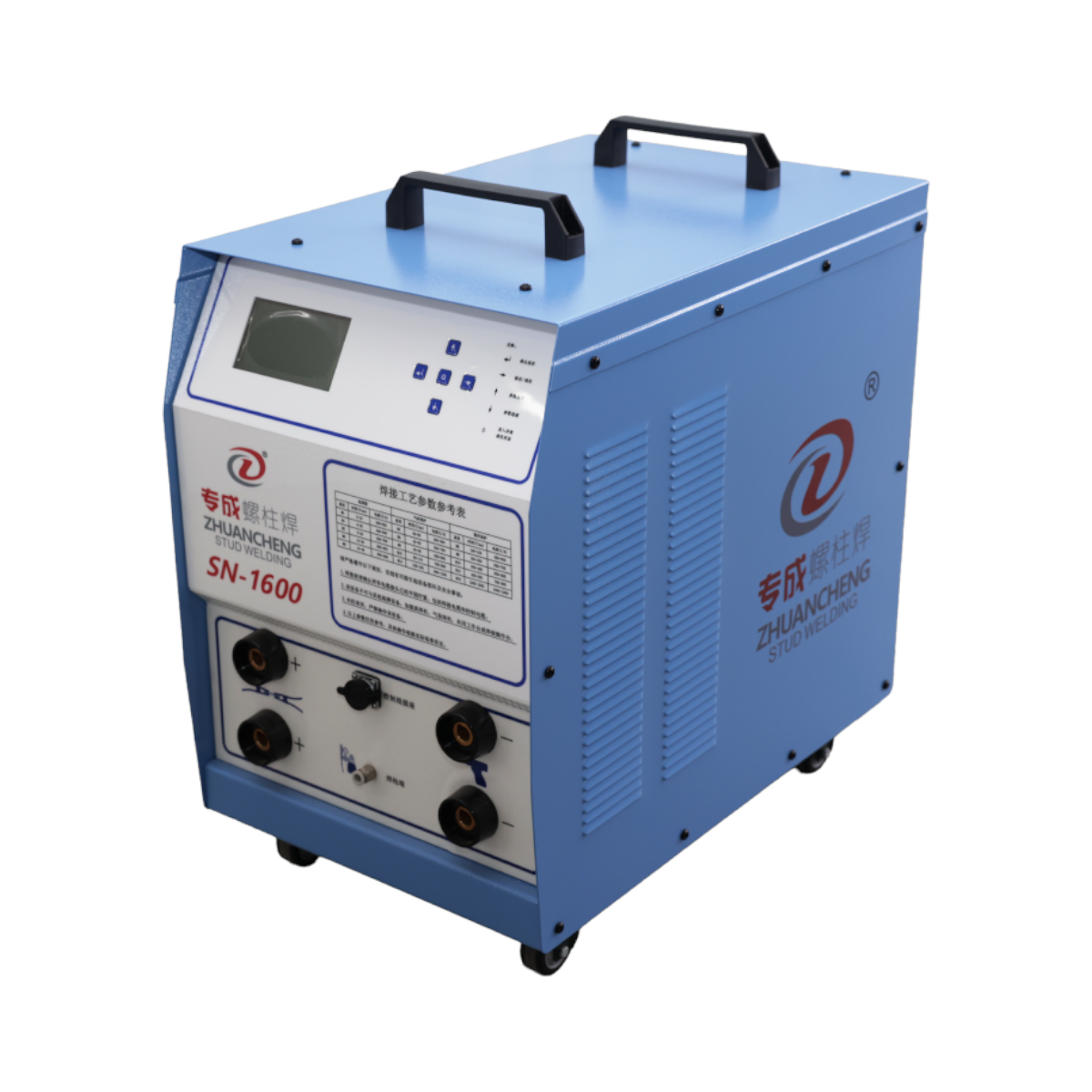

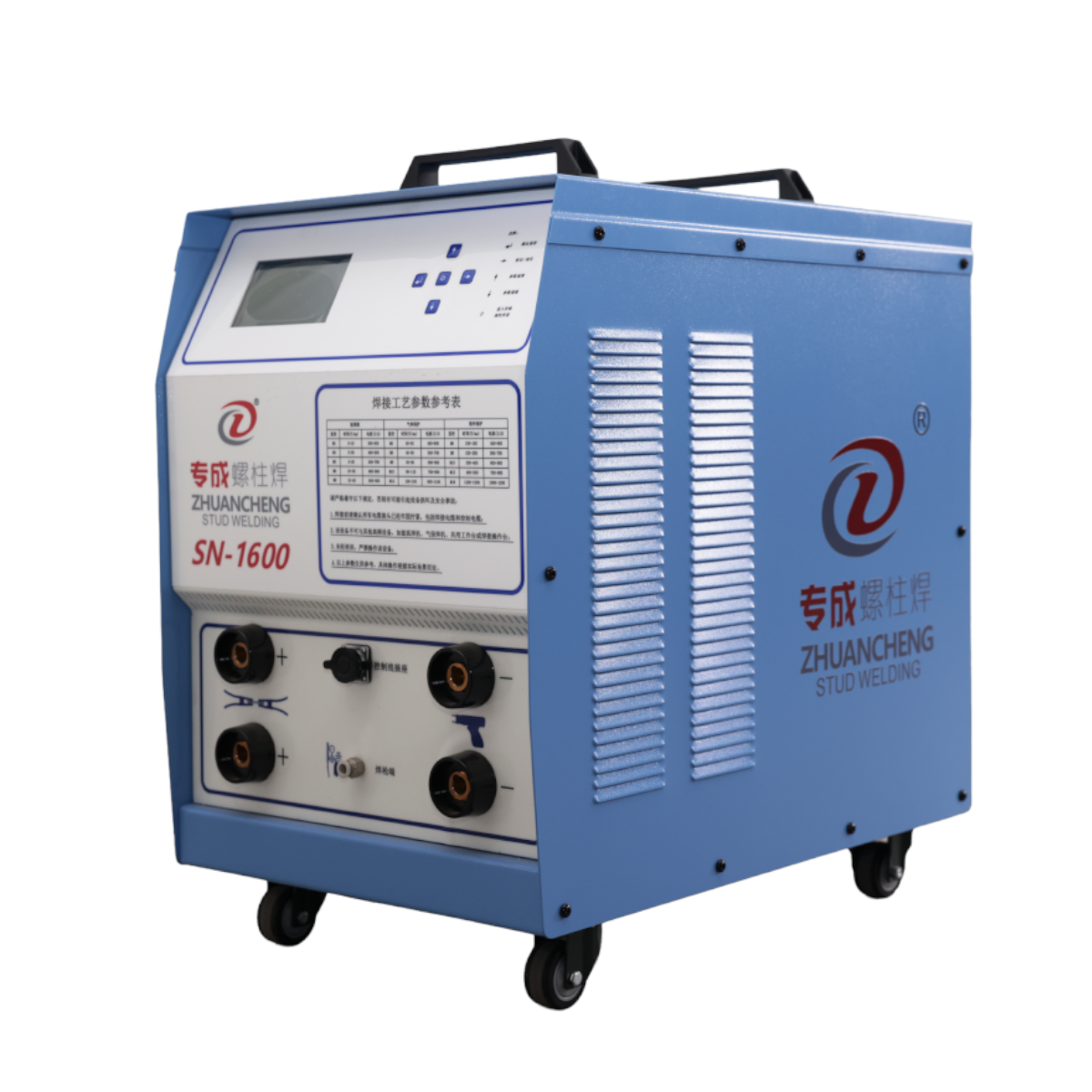

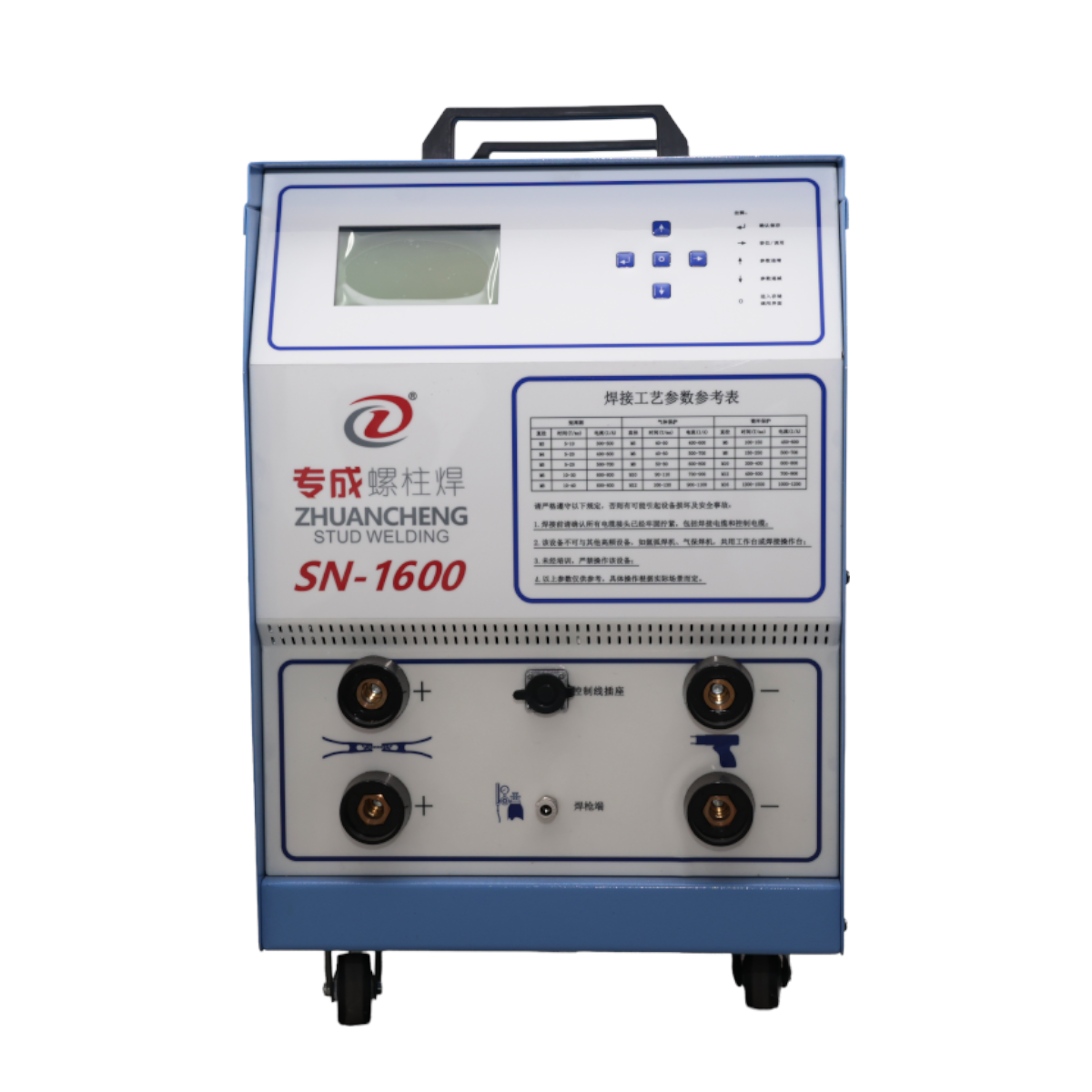

SN-1600 Inverter Draw Arc Stud Welding Machine

SN-1600 Inverter Draw Arc Stud Welding Machine

The SN-1600 represents our mid-range powerhouse in the SN series, delivering 1600A maximum welding current for heavy-duty industrial applications. This machine combines robust power output with the precision control of advanced inverter technology.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 1600A
• Max Welding Current: 1600A
• Welding Current Range: 200-1600A
• Welding Time Range: 0-2000ms
• Suitable Stud Diameter: M3-M16
• Applicable Material Thickness: ≥0.65mm
• Weight: 60kg
• Dimensions: 680×540×940mm
• Cooling Mode: Air Cooled

Key Features

• High-power 1600A output for demanding applications
• Mature IGBT technology with enhanced arc stability
• Microcomputer automatic control with real-time monitoring
• Wide parameter adjustment range for versatile welding
• Excellent performance on thick steel plates
• Reliable air cooling system for continuous operation
• Professional-grade construction for industrial environments

Applications

Engineered for heavy industrial manufacturing including shipbuilding, large steel structures, pressure vessel fabrication, heavy machinery assembly, and applications requiring robust stud welding on thick materials.

What's Included

• SN-1600 Main Unit
• Heavy-Duty Welding Gun
• Ground Cable Assembly
• Technical Documentation
• ISO Quality Certification

Industrial Reliability - Designed for continuous operation in demanding production environments with consistent weld quality.
