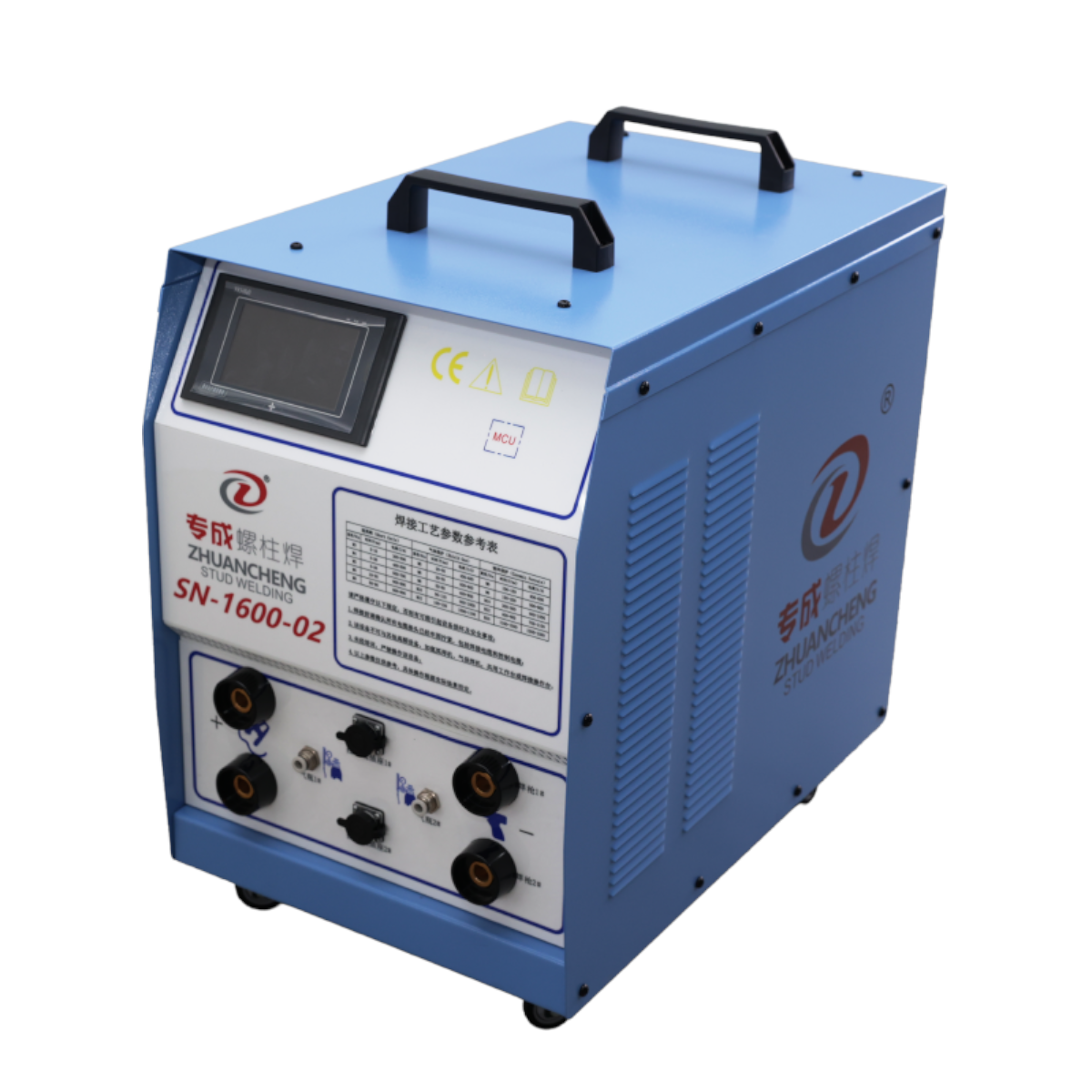

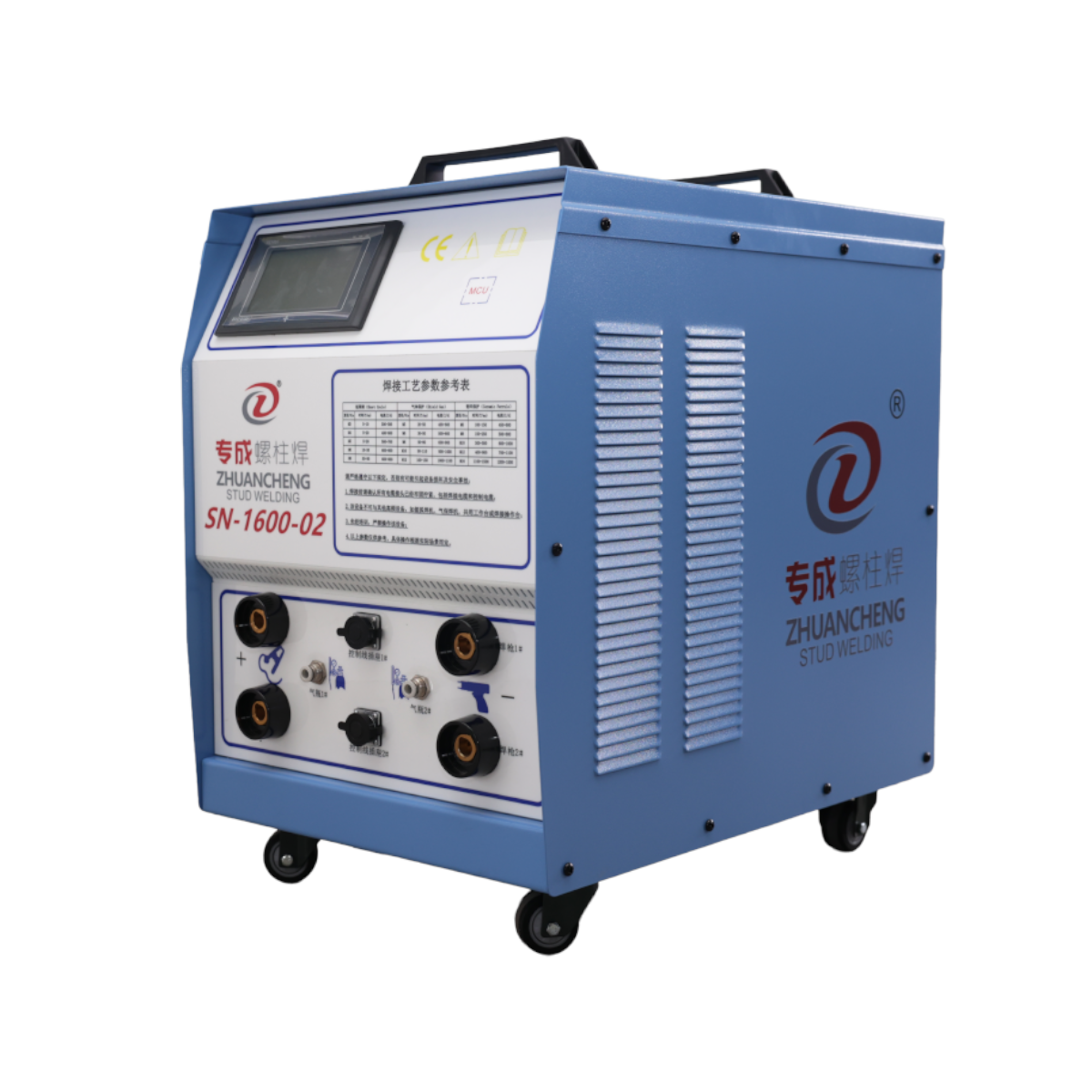

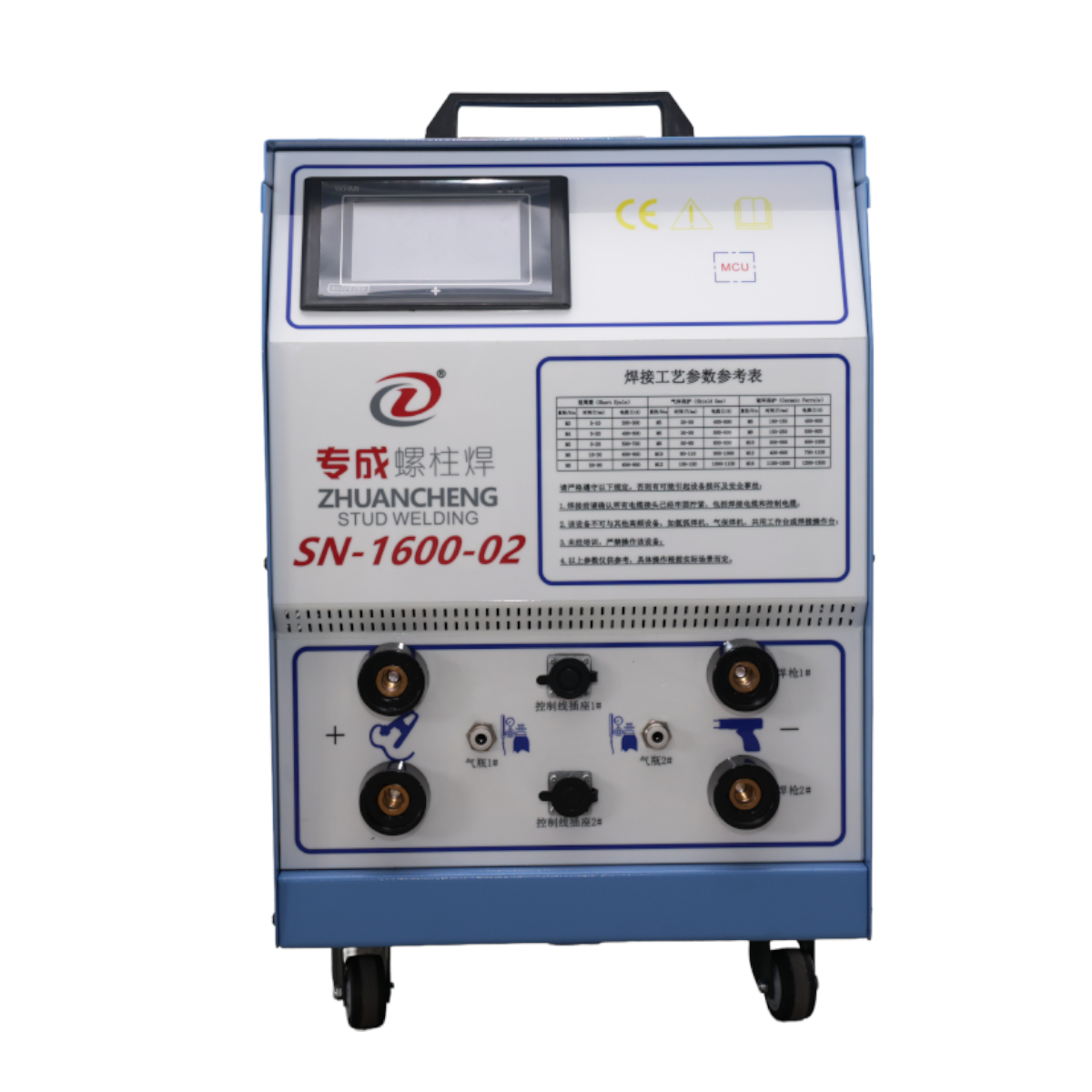

SN-1600-02 Dual-Channel Stud Welding System

SN-1600-02 Dual-Channel Stud Welding System

The SN-1600-02 represents the premium tier of our dual-channel stud welding systems, delivering 1600A of welding power per channel. This heavy-duty system is engineered for demanding industrial applications requiring both high power and operational flexibility.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 1600A per channel
• Max Welding Current: 1600A per channel
• Welding Current Range: 200-1600A
• Welding Time Range: 0-2000ms
• Number of Channels: 2 independent channels
• Weight: 60kg
• Dimensions: 680×540×940mm
• Cooling Mode: Air Cooled

Key Features

• Premium 1600A dual-channel configuration for heavy-duty applications
• Simultaneous operation of two independent welding processes
• Each channel handles M3-M16 studs with full parameter control
• Advanced IGBT inverter technology for superior performance
• Ideal for high-volume production with varied stud requirements
• Robust industrial construction for continuous operation
• Significantly improves production efficiency and flexibility

Applications

Designed for large-scale industrial operations including major shipyards, automotive manufacturing plants, heavy steel fabrication facilities, and production environments requiring maximum flexibility with heavy-duty welding capabilities on thick materials.

What's Included

• SN-1600-02 Dual-Channel Main Unit
• Two Heavy-Duty Professional Welding Guns
• Professional Ground Cable Assembly
• Complete Technical Documentation
• ISO Quality Certification

Premium Dual-Channel Performance - The ultimate solution for high-power, high-flexibility industrial stud welding operations.
