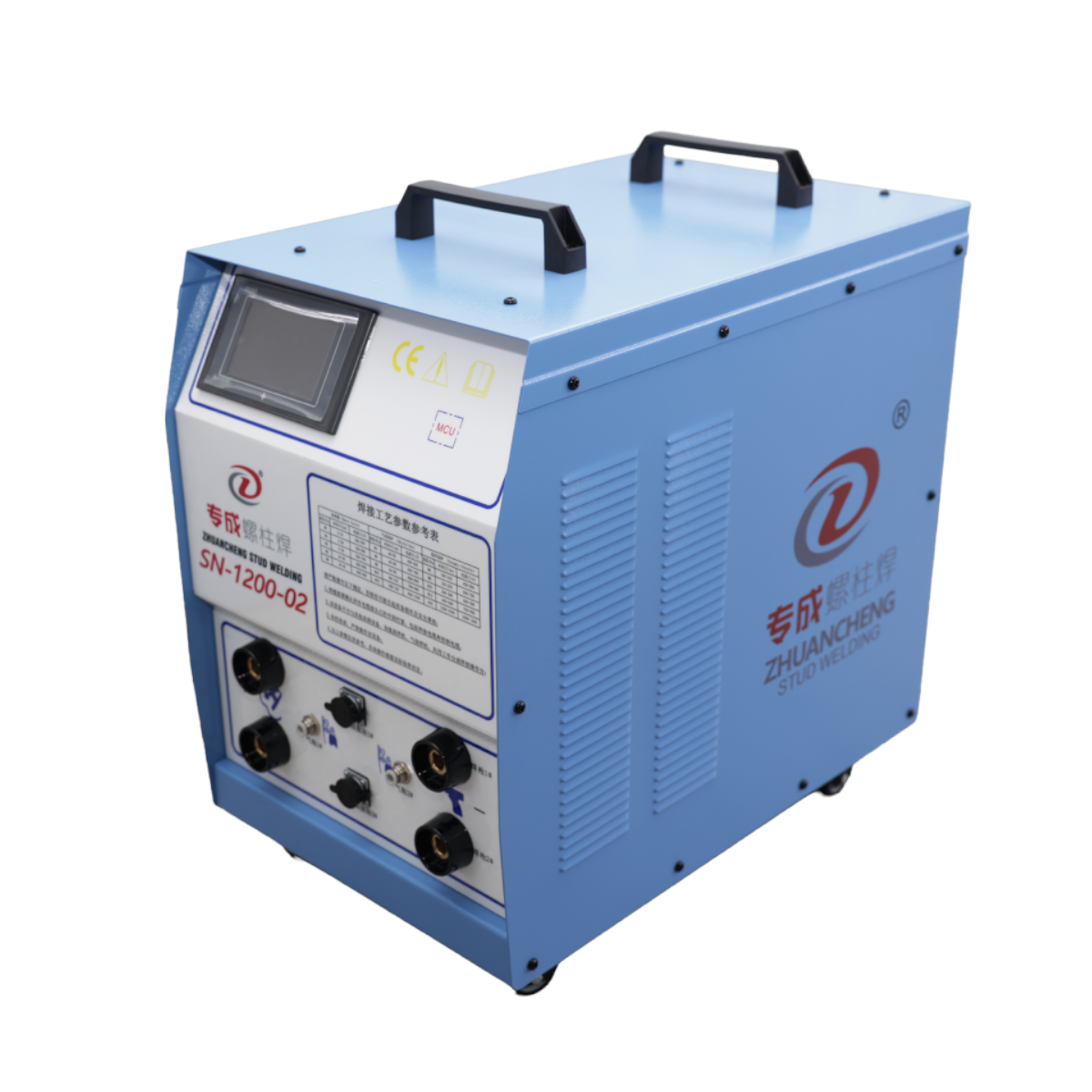

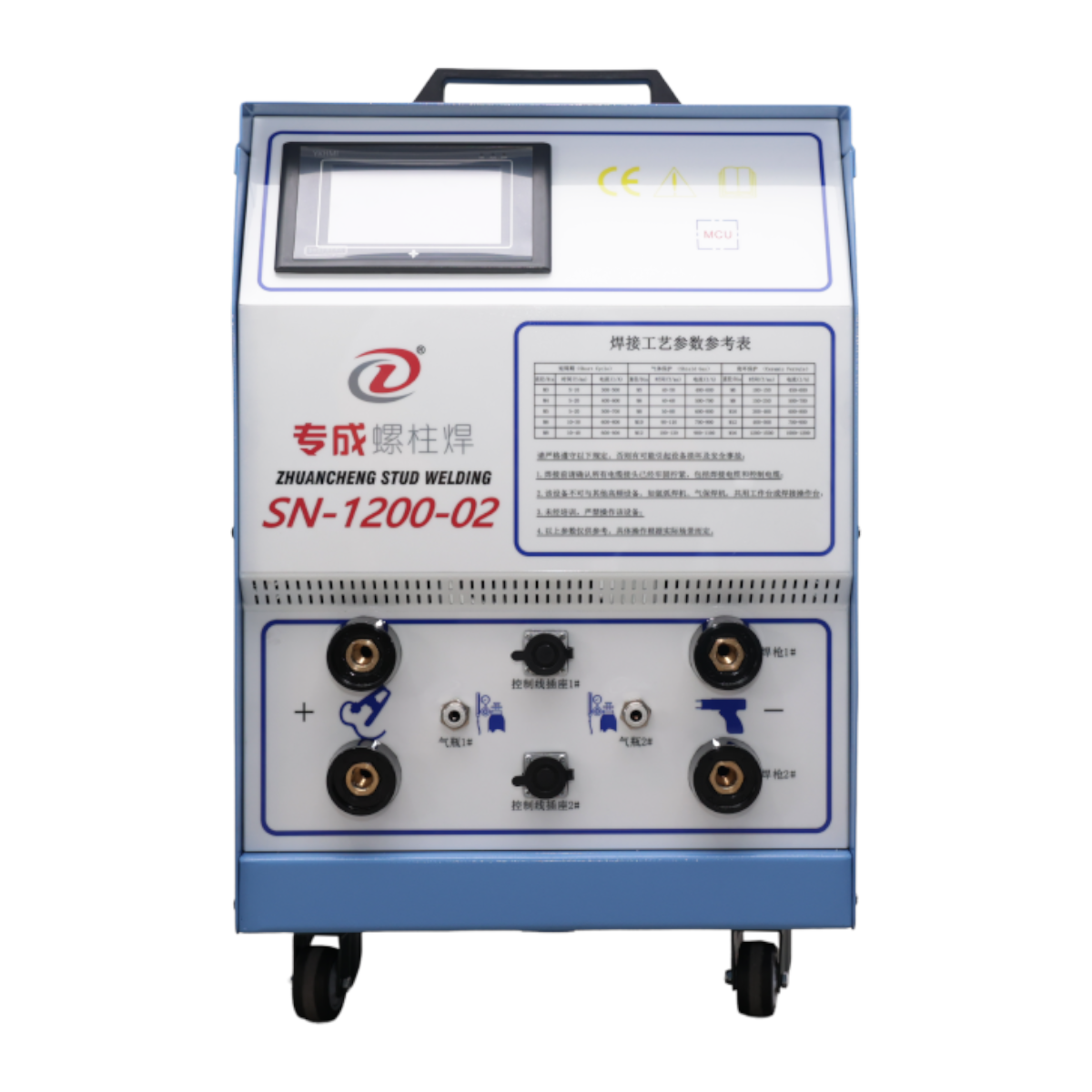

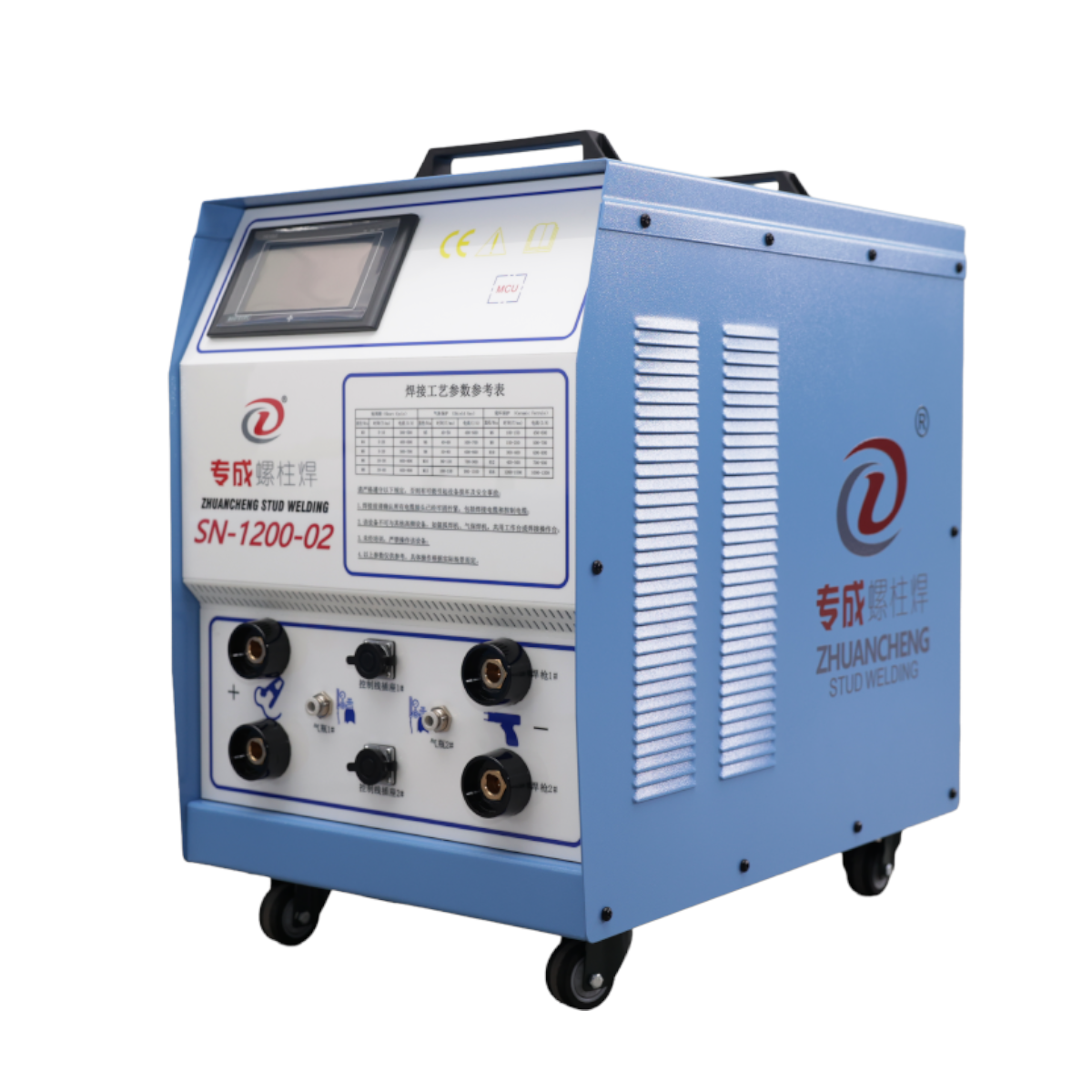

SN-1200-02 Dual-Channel Stud Welding System

SN-1200-02 Dual-Channel Stud Welding System

The SN-1200-02 dual-channel stud welding system combines the power of 1200A welding current with the versatility of independent dual channels. This advanced system is designed for high-efficiency production environments requiring flexibility in stud specifications.

Technical Specifications

• Input Voltage: AC 3-phase 380V ±15% 50-60Hz
• Rated Power: 1200A per channel
• Max Welding Current: 1200A per channel
• Welding Current Range: 200-1200A
• Welding Time Range: 0-2000ms
• Number of Channels: 2 independent channels
• Weight: 55kg
• Dimensions: 550×540×640mm
• Cooling Mode: Air Cooled

Key Features

• High-power 1200A dual-channel configuration
• Simultaneous welding of different stud specifications
• Independent parameter control for each channel
• Advanced IGBT inverter technology on both channels
• Handles M3-M16 studs across both channels
• Dramatically reduces setup time and increases throughput
• Professional-grade construction for industrial environments

Applications

Engineered for high-volume manufacturing including automotive assembly, heavy machinery production, shipbuilding operations, and industrial fabrication requiring rapid switching between different stud sizes without production interruption.

What's Included

• SN-1200-02 Dual-Channel Main Unit
• Two Professional Welding Guns
• Ground Cable Assembly
• Comprehensive User Manual
• ISO Quality Certificate

High-Efficiency Production - Maximize productivity with powerful dual-channel capability and seamless specification switching.
