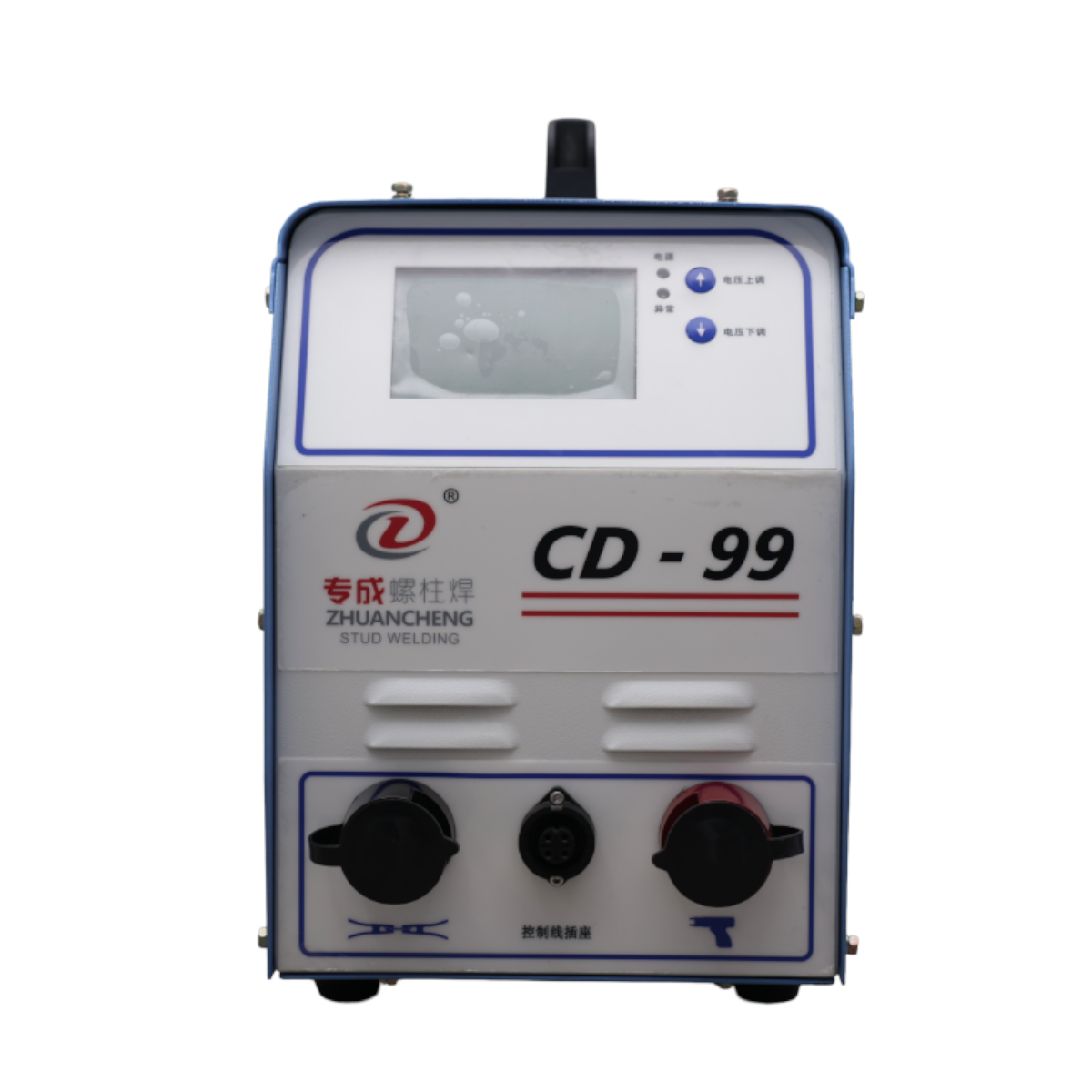

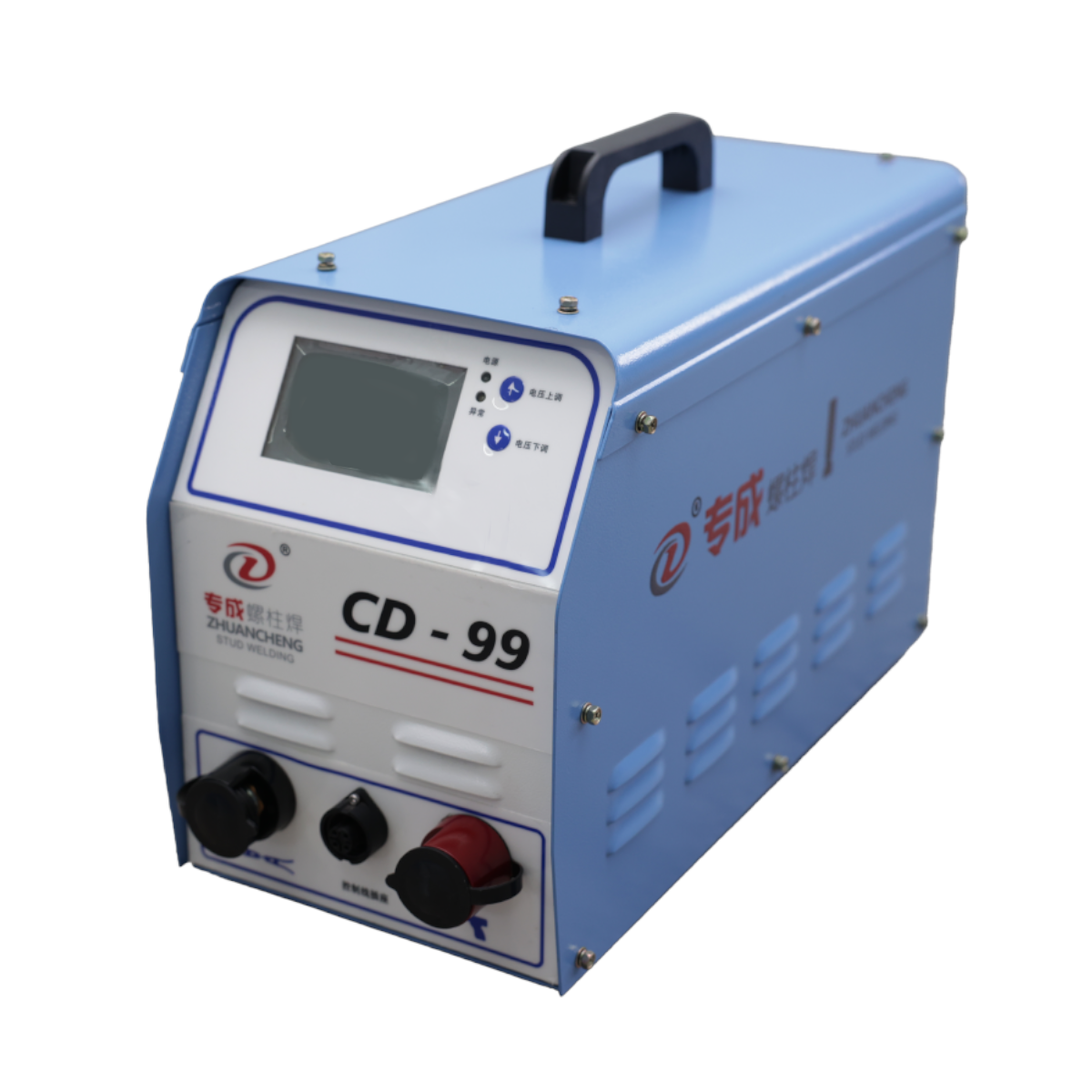

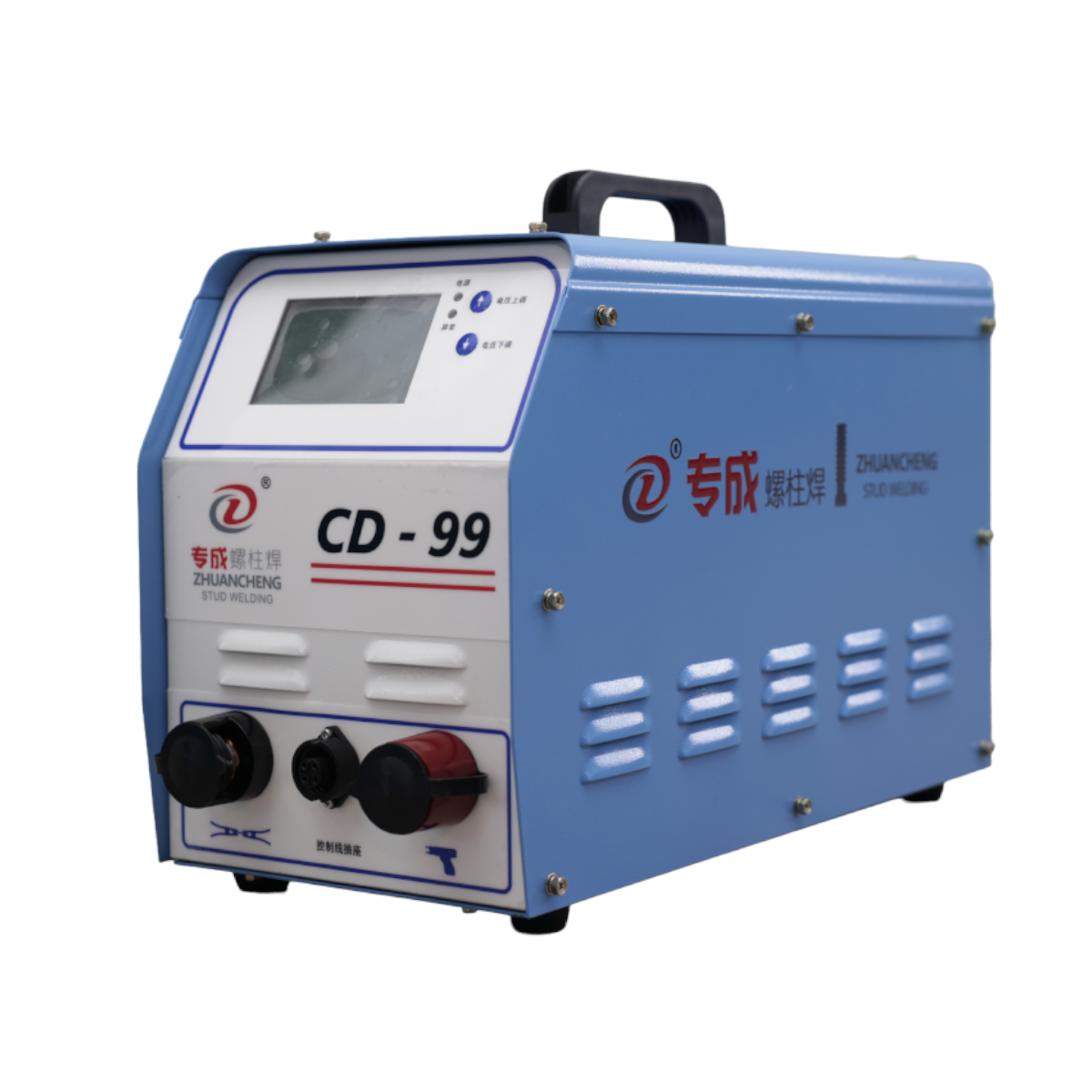

CD-99 Capacitor Discharge Stud Welding Machine

CD-99 Capacitor Discharge Stud Welding Machine

The CD-99 is a mid-range capacitor discharge stud welding machine offering enhanced power and capacity for thin to medium plate applications. With 600W power output and increased capacitance, this machine handles a wider range of stud sizes while maintaining the precision and speed of capacitor discharge technology.

Technical Specifications

• Input Voltage: 220V/AC or 110V/AC
• Rated Power: 600W
• Voltage Range: 20-200
• Fluctuated Voltage Fluctuated Range: ±10%
• Welding Speed: N≥30 points/min
• Available Welded Studs: M3-M10
• Capacitor Capacity: 99000μF
• Available Welded Metal Material: Mild Steel / Stainless Steel
• Welded Metal Thickness: thickness ≥ 0.8 mm
• Weight: 14kg
• Dimensions: 420×250×430mm
• Suitable Welding Torch: CN-03
• Cooling Mode: 自然/Air Cooled
• Protection Rate: IP23

Key Features

• Enhanced 600W power output for larger studs
• Increased 99,000μF capacitor capacity
• Ultra-fast welding speed (≥30 points per minute)
• Handles M3-M10 studs with precision
• No back-side marking on thin materials
• Minimal heat-affected zone
• Compact 14kg portable design
• Excellent for stainless steel and mild steel

Applications

Ideal for kitchen equipment manufacturing, automotive body panels, elevator components, instrument panels, sheet metal fabrication, and applications requiring M3-M10 stud welding on thin materials without back-side damage.

What's Included

• CD-99 Main Unit
• CN-03 Welding Torch
• Ground Cable
• User Manual
• ISO Quality Certificate

Enhanced Precision Performance - The perfect balance of power and precision for versatile thin-plate welding applications.
