CD-66 Capacitor Discharge Stud Welding Machine

CD-66 Capacitor Discharge Stud Welding Machine

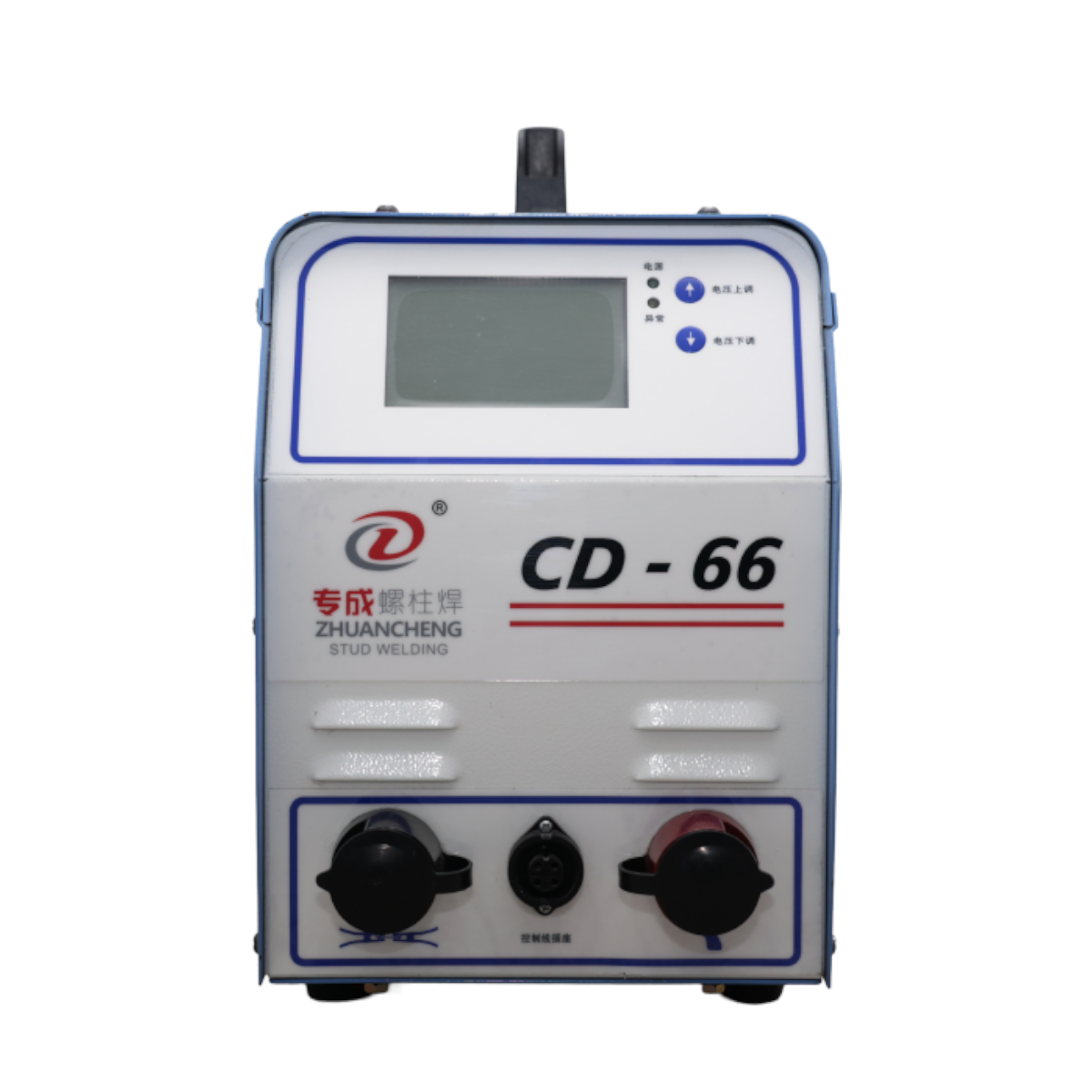

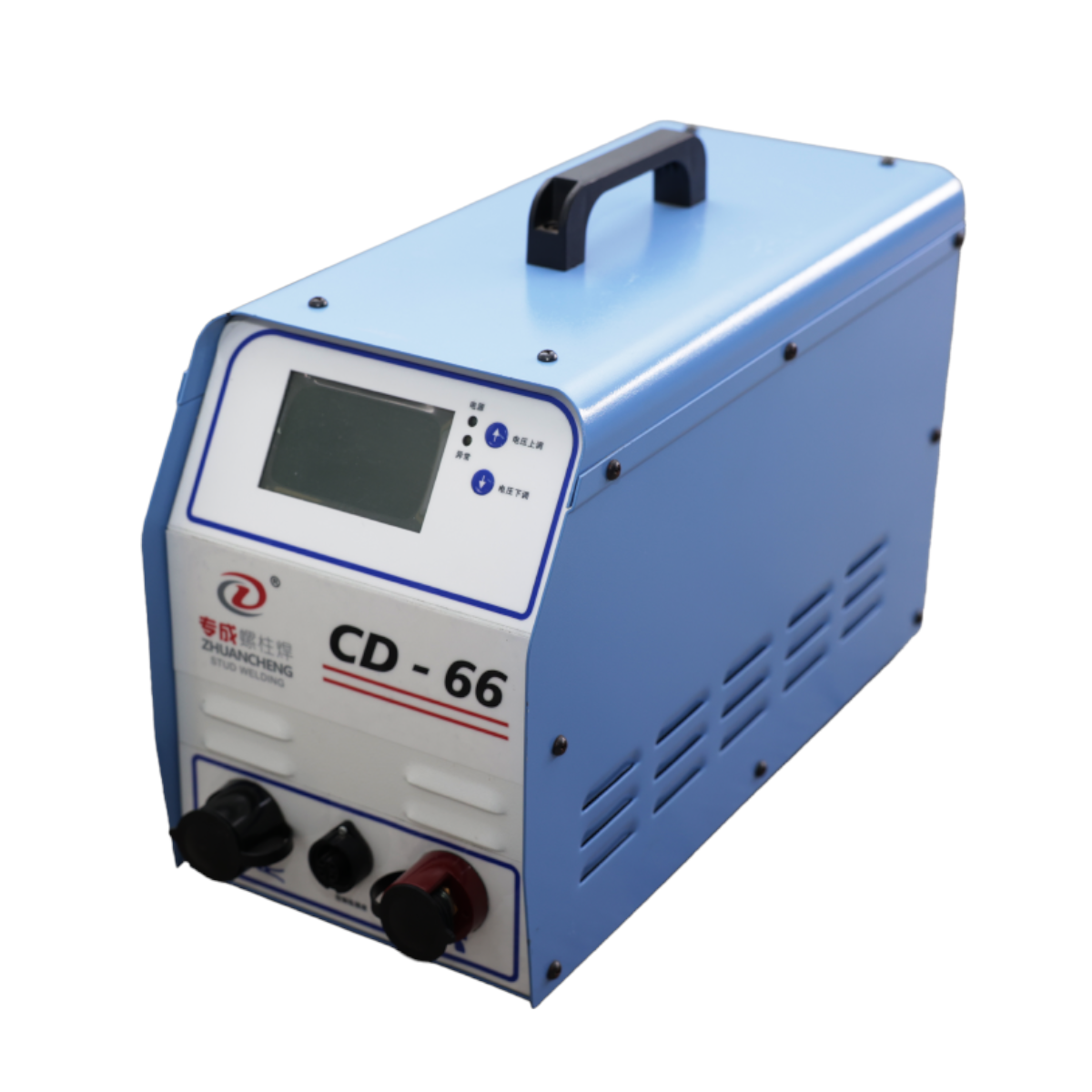

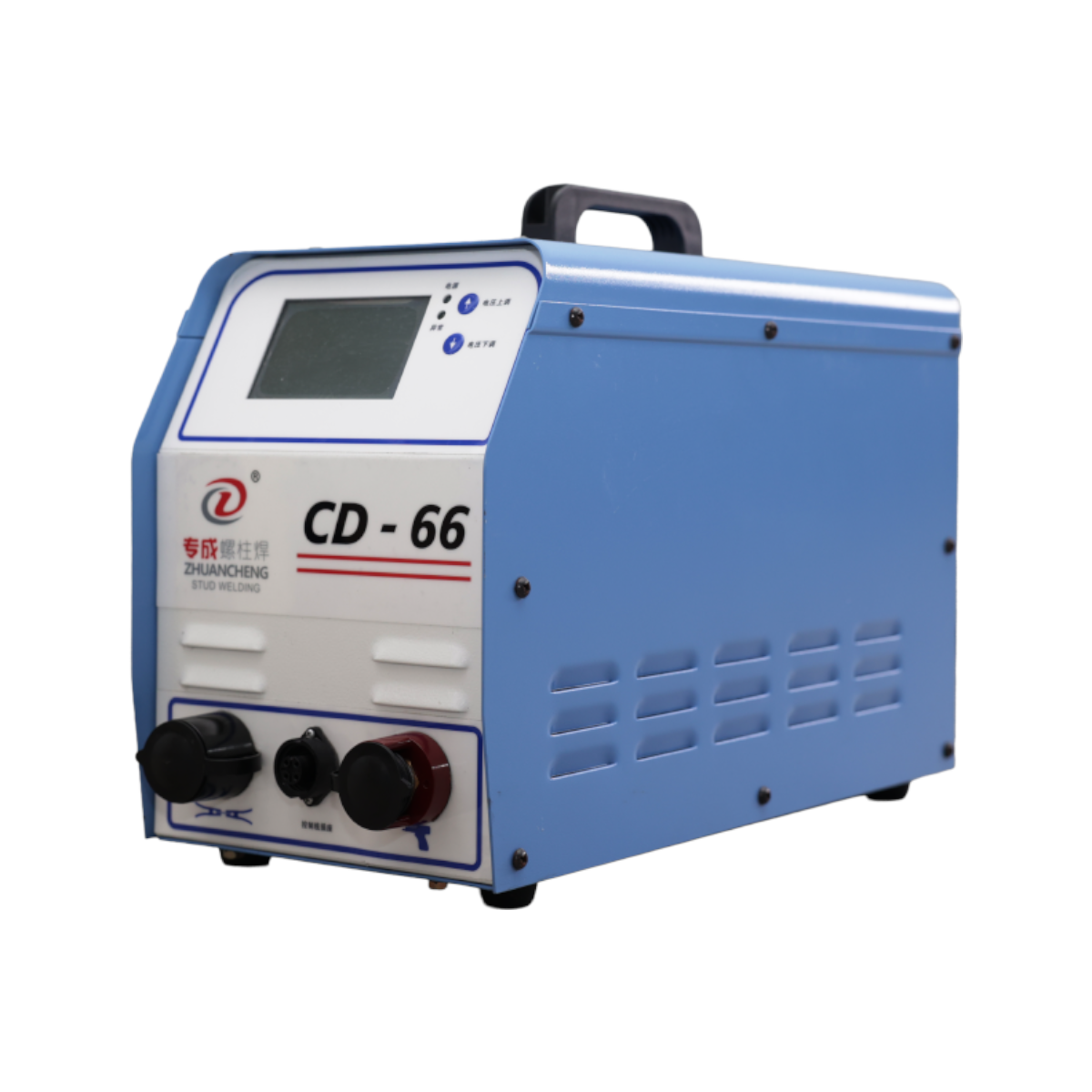

The CD-66 is a precision capacitor discharge stud welding machine designed for thin plate applications. Utilizing capacitor banks as the power source, this machine delivers rapid energy discharge for high-quality welds with minimal heat input and no back-side marking.

Technical Specifications

• Input Voltage: 220V/AC or 110V/AC
• Rated Power: 500W
• Voltage Range: 20-200
• Fluctuated Voltage Fluctuated Range: ±10%
• Welding Speed: N≥30 points/min
• Available Welded Studs: M3-M8
• Capacitor Capacity: 66000μF
• Available Welded Metal Material: Mild Steel / Stainless Steel
• Welded Metal Thickness: thickness ≥ 0.8 mm
• Weight: 13kg
• Dimensions: 420×250×430mm
• Suitable Welding Torch: CN-03
• Cooling Mode: 自然/Air Cooled
• Protection Rate: IP23

Key Features

• Ultra-fast welding speed (≥30 points per minute)
• Minimal base material deformation
• No back-side marking on thin plates
• Welding process completed in 0.001-0.003 seconds
• Compact and lightweight 13kg design
• Suitable for M3-M8 studs on materials as thin as 0.8mm
• Ideal for stainless steel and mild steel applications

Applications

Perfect for kitchen appliances, instrument panels, elevator manufacturing, automotive components, ships, and any application requiring precision stud welding on thin materials without back-side damage.

What's Included

• CD-66 Main Unit
• CN-03 Welding Torch
• Ground Cable
• User Manual
• Quality Certificate

Precision Welding Solution - Ideal for applications where weld integrity and minimal heat impact are critical.
