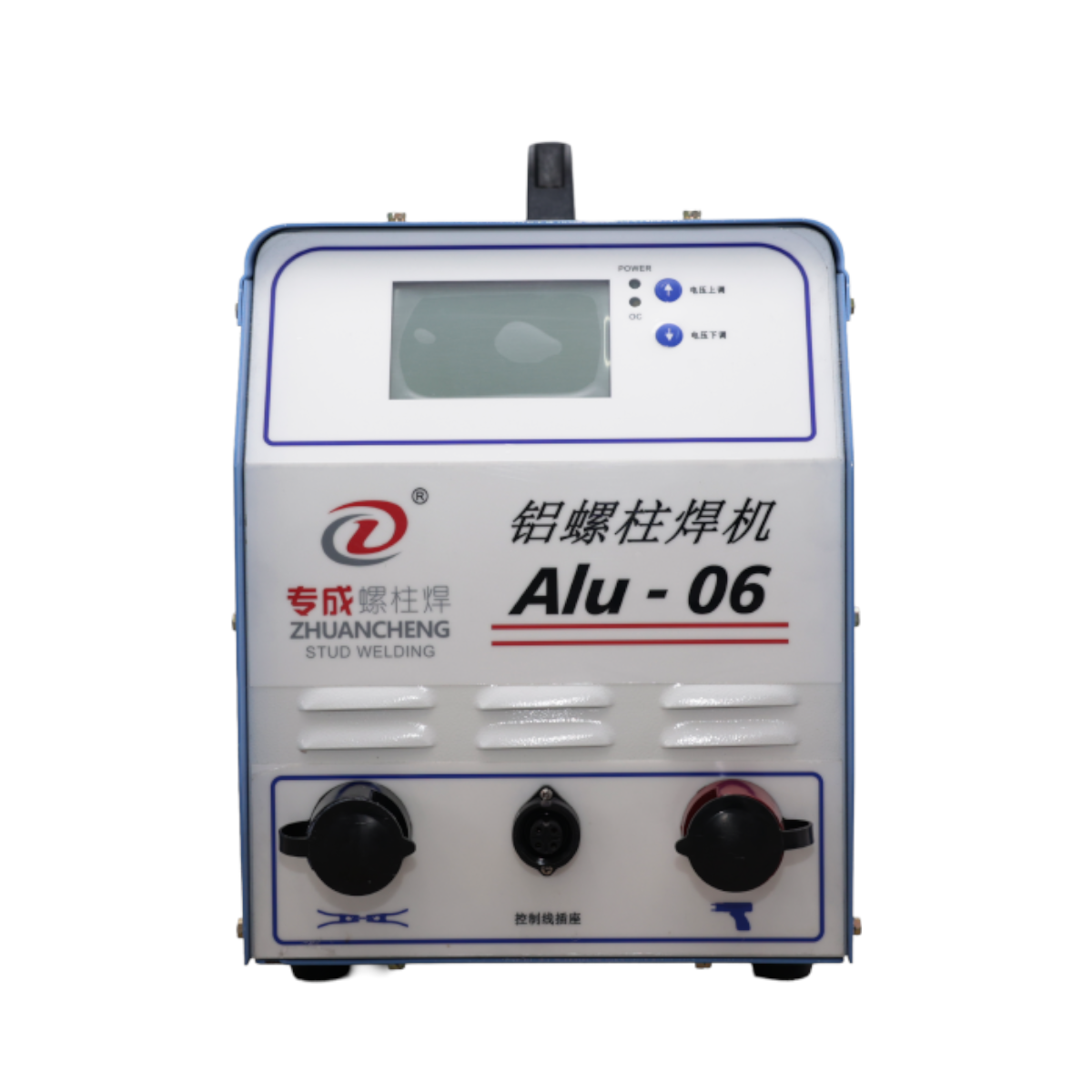

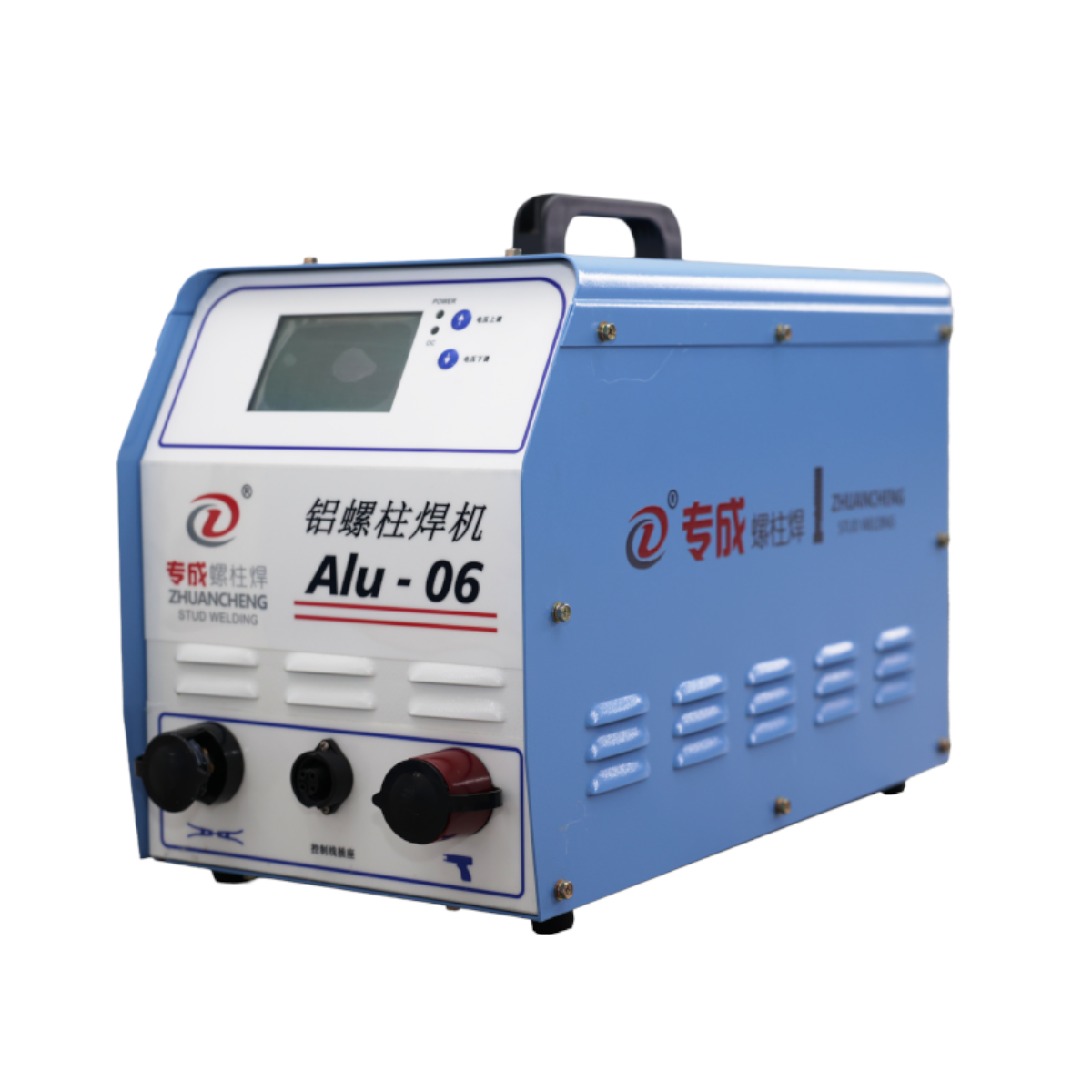

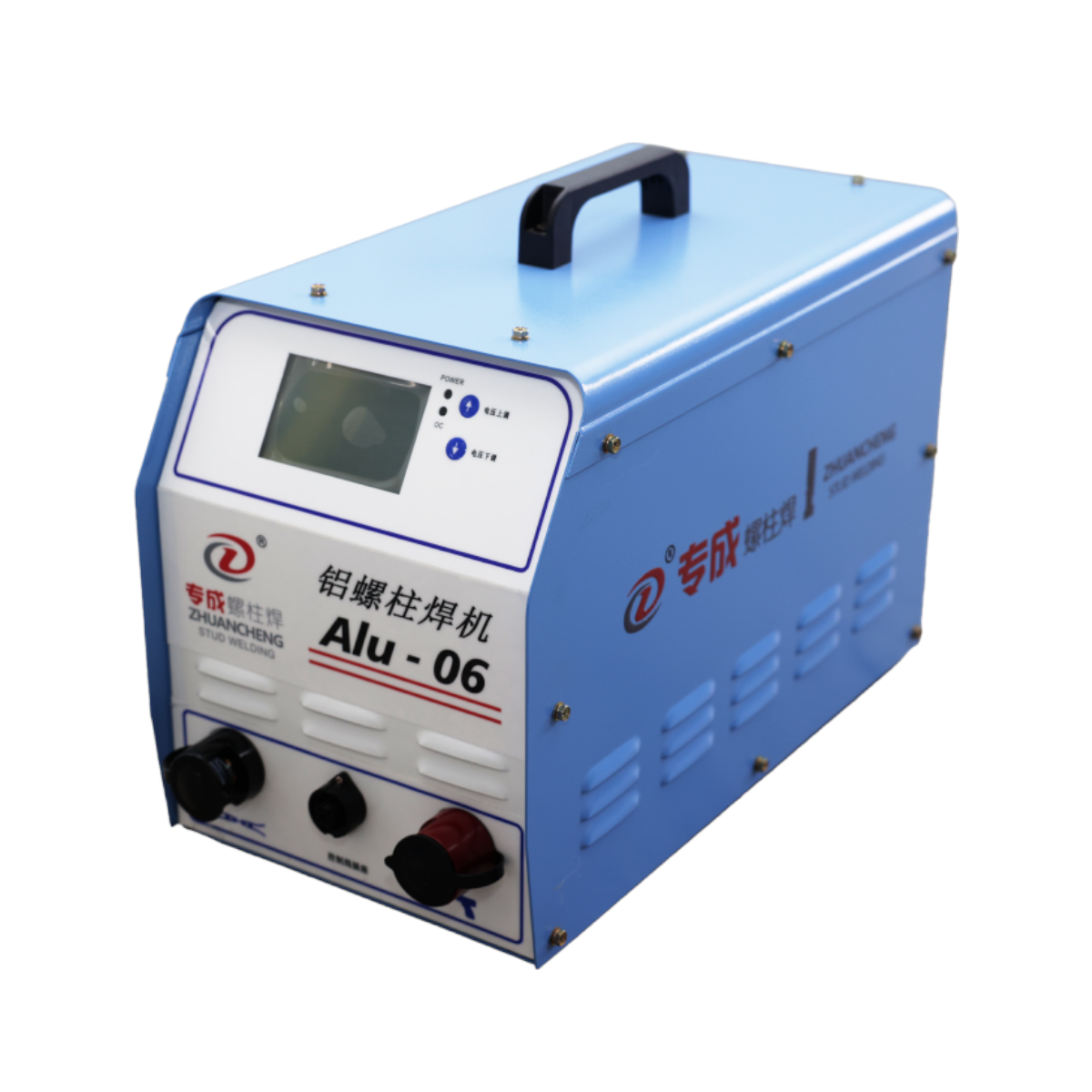

ALU-06 Aluminum Stud Welding Machine

ALU-06 Aluminum Stud Welding Machine

The ALU-06 is a specialized stud welding machine specifically engineered for welding aluminum and magnesium alloy studs. This machine addresses the unique challenges of aluminum welding, including rapid oxide film formation and high thermal conductivity, ensuring consistent, high-quality welds on aluminum materials.

Technical Specifications

• Input Voltage: 220V/AC or 110V/AC
• Rated Power: 700W
• Voltage Range: 20-200
• Fluctuated Voltage Fluctuated Range: ±10%
• Welding Speed: N≥30 points/min
• Available Welded Studs: M3-M6
• Capacitor Capacity: 99000μF
• Available Welded Metal Material: 铝 Aluminum
• Welded Metal Thickness: 厚度≥0.8mm thickness ≥ 0.8 mm
• Weight: 13kg
• Dimensions: 420×250×430mm
• Suitable Welding Torch: CN-03
• Cooling Mode: 自然/Air Cooled

Key Features

• Designed specifically for aluminum and magnesium alloy materials
• Rapid charging and discharging process optimized for aluminum
• Minimal welding spatter with beautiful weld appearance
• Continuously adjustable charging voltage for precise control
• Suitable for M3-M6 aluminum studs
• Compact and portable 13kg design
• Overcomes challenges of aluminum oxide film formation
• Handles high thermal conductivity of aluminum materials

Technical Advantages

Aluminum welding presents unique challenges due to rapid oxide film formation and high thermal conductivity that can cause rapid heat dissipation during welding, making it difficult for welds to form. The ALU-06 is specifically designed to handle these characteristics, ensuring consistent, high-quality welds on aluminum materials.

Applications

Ideal for aerospace components, automotive manufacturing, sheet metal fabrication, architectural applications, and any industry requiring aluminum stud welding capabilities. Perfect for applications where lightweight materials and corrosion resistance are essential.

What's Included

• ALU-06 Main Unit
• CN-03 Specialized Welding Torch
• Ground Cable
• User Manual
• ISO Quality Certificate

Specialized Aluminum Solution - The expert choice for reliable, high-quality aluminum and magnesium alloy stud welding.
